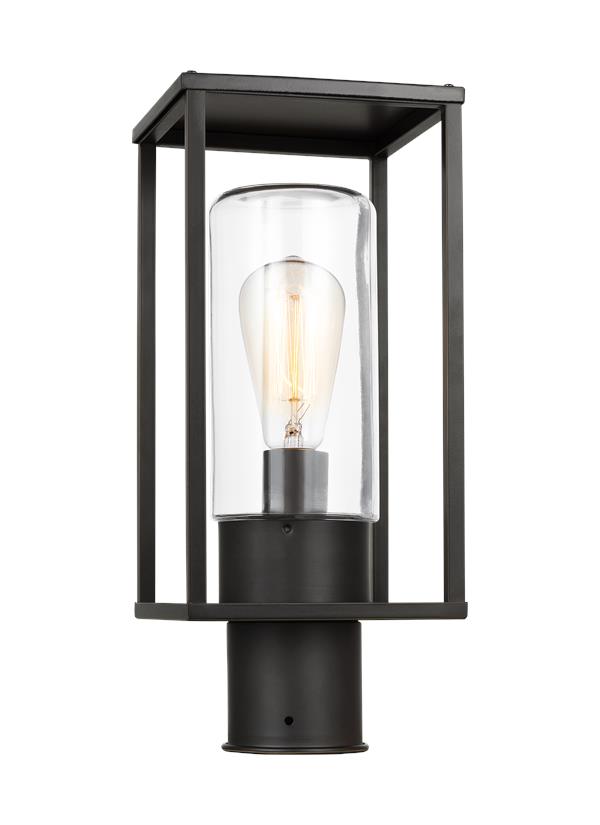

8231101EN7-71: One Light Outdoor Post Lantern


Collection:  Vado

UPC #:785652130373

Finish:   Antique Bronze (71)
Dimensions:

Length: 6 3/8"
Width: 6 3/8''
Height: 15''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Post Mount
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  1 - LED Medium ST19 8w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (VADO_OD_POST)
Trilingual (English, Spanish, and French) (8231)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear 1       8 1/4 3 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Post 3      3 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8531101-12 1  785652130373  17.9 8.9 8.8 0.811 3.15 0 Yes
Master Pack 8231101EN7-71 0  10785652130370
NJ Pallet   80    48 40 75 83.333 252 No
NV Pallet   80    48 40 75 83.333 252 No
