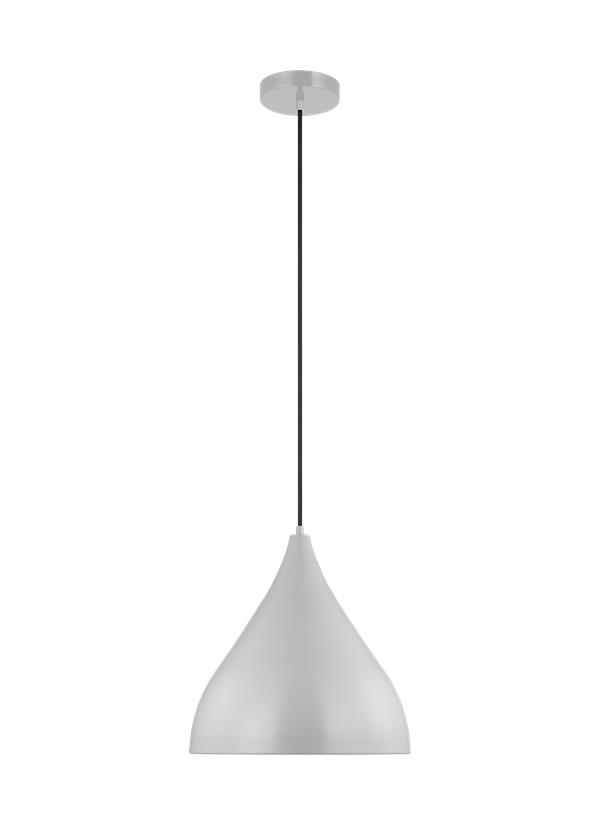

6645301-118: Medium Pendant


Collection:  Oden

UPC #:785652123795

Finish:   Matte Grey (118)
Dimensions:

Diameter: 14''
Width: 14''
Height: 14''
Weight: 3.9 lbs.
Overall Height: 152''
Wire: 144'' (color/Black)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • This product may be mounted on a sloped ceiling
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Matte Grey
1 Fabric Cord - Fabric - Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (ODEN_PEND)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Matte Grey 1       14 14
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6645301-118 1  785652123795  17.3 16.6 16.2 2.692 7.95 0 Yes
Master Pack 6645301-118 0  10785652123792
NJ Pallet   24    48 40 77 85.556 190.8 No
NV Pallet   24    48 40 77 85.556 190.8 No
