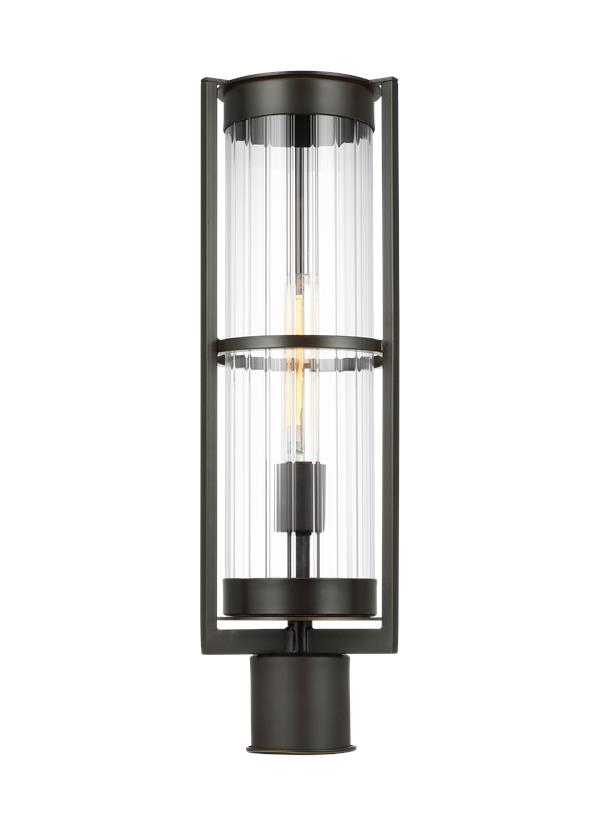

8226701-71: One Light Outdoor Post Lantern


Collection:  Alcona

UPC #:785652125713

Finish:   Antique Bronze (71)
Dimensions:

Diameter: 7''
Width: 7''
Height: 21''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Post Mount
Connection: Mounted To Box
Bulbs:
  1 - Medium T10 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (ALCONA_OD_POST)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Fluted 1       16 1/2 4 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Post 3      3 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8508901-12 1  785652125713  25.5 8.9 8.4 1.103 4.6 0 Yes
Master Pack 8226701-71 0  10785652125710
NJ Pallet   48    48 40 77 85.556 220.8 No
NV Pallet   48    48 40 77 85.556 220.8 No
