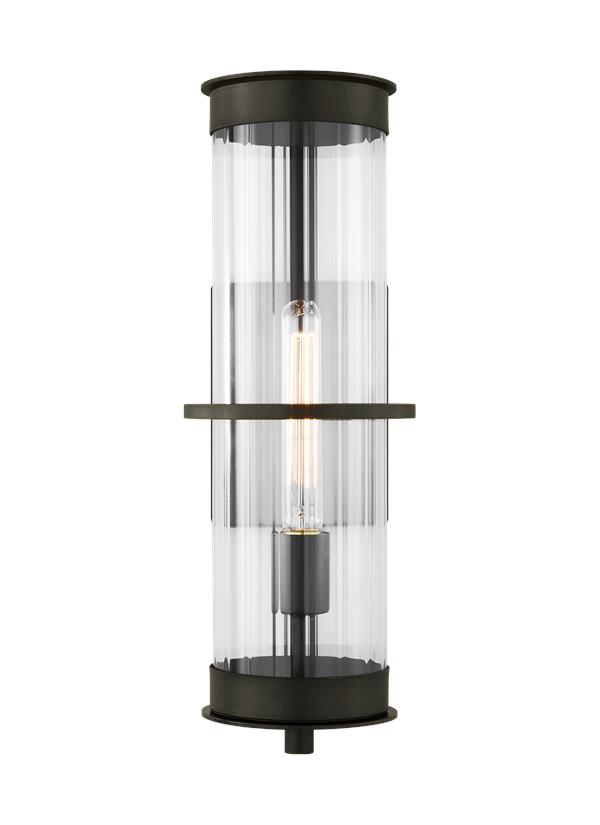

8726701-71: Large One Light Outdoor Wall Lantern

	Collection: Alcona
	UPC #:785652125652
	Finish: Antique Bronze (71)

Dimensions:


Width:	6 1/8''
Height:	18''

Extends:

7 3/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Screw(s)

Connection:

Mounted To Box

Bulbs:

1 - Medium T10 60w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Antique Bronze

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (8526701 8626701 8726701 8826701)
Trilingual (English, Spanish, and French) (ALCONA_OD_WALL)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear Fluted

17 1/8

4 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	7	5	3/4		8 7/8

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8508901-12	1	785652125652	23.7	9.2	8.9	1.123	5.15	0	Yes
Master Pack	8726701-71	0	10785652125659
NJ Pallet		72		48	40	77	85.556	370.8		No
NV Pallet		72		48	40	77	85.556	370.8		No
