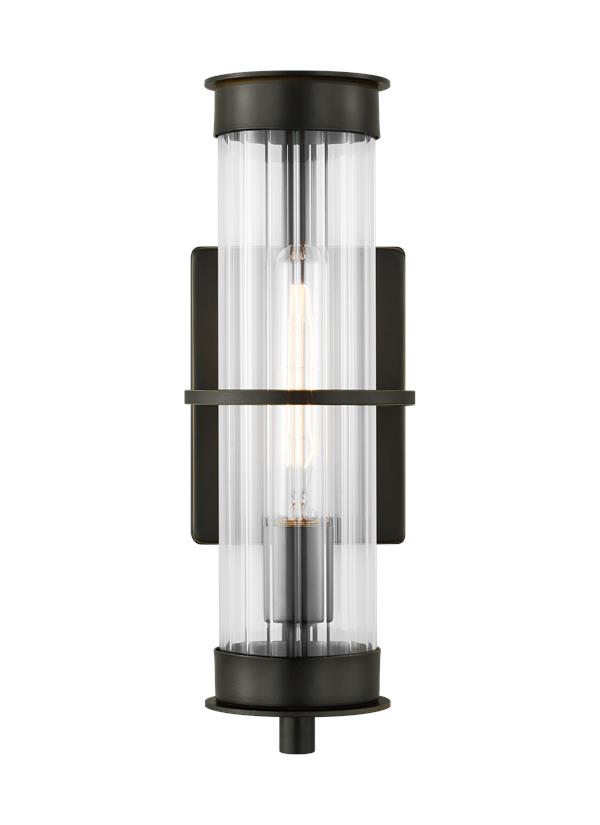

8626701-71: Medium One Light Outdoor Wall Lantern



Collection:  Alcona


UPC #:785652125638

Finish:   Antique Bronze (71)

Dimensions:

Width: 5''
Height: 14 7/8''
Extends: 6 1/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  1 - Medium T10 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8526701 8626701 8726701 8826701)
Trilingual (English, Spanish, and French) (ALCONA_OD_WALL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear Fluted 1       13 5/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8508901-12 785652125638  19.7 7.9 7.4 0.666 3.5 0 Yes
Master Pack 8626701-71 10785652125635
NJ Pallet   108    48 40 77 85.556 383.4 No
NV Pallet   108    48 40 77 85.556 383.4 No
