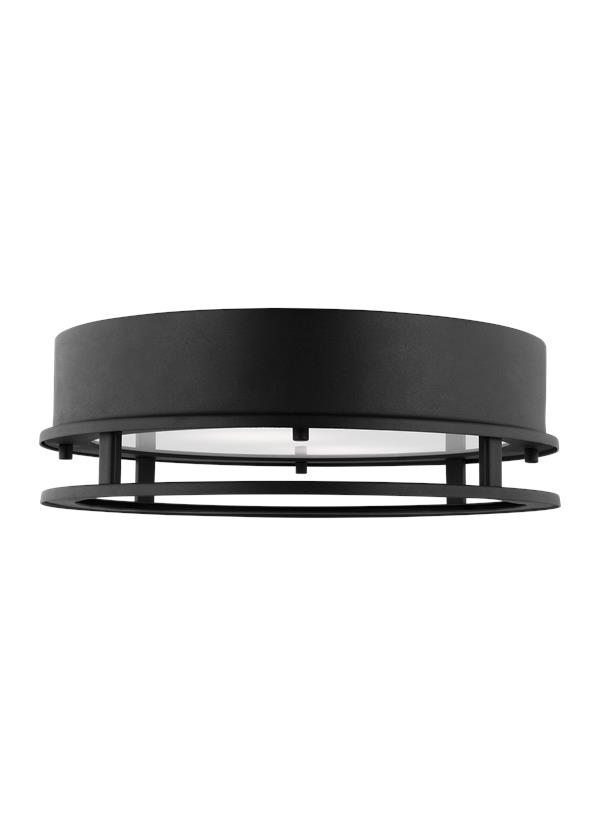

7845893S-12: LED Outdoor Flush Mount


Collection:  Union

UPC #:785652125485

Finish:   Black (12)
Dimensions:

Diameter: 15''
Width: 15''
Height: 4 1/2''
Weight: 3.7 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14
Watts Consumed: 14
Watts Rated: 14
Hours Rated: 50000
Lumens: 330
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  2 - LED Integrated Modules 14w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (UNION_FLUSH)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Acrylic Frosted 1       5/32 14 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3      15
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8545893S-71 1  785652125485  17.6 17 6.3 1.091 4.85 0 Yes
Master Pack 7845893S-12 0  10785652125482
NJ Pallet   56    48 40 77 85.556 271.6 No
NV Pallet   56    48 40 77 85.556 271.6 No
