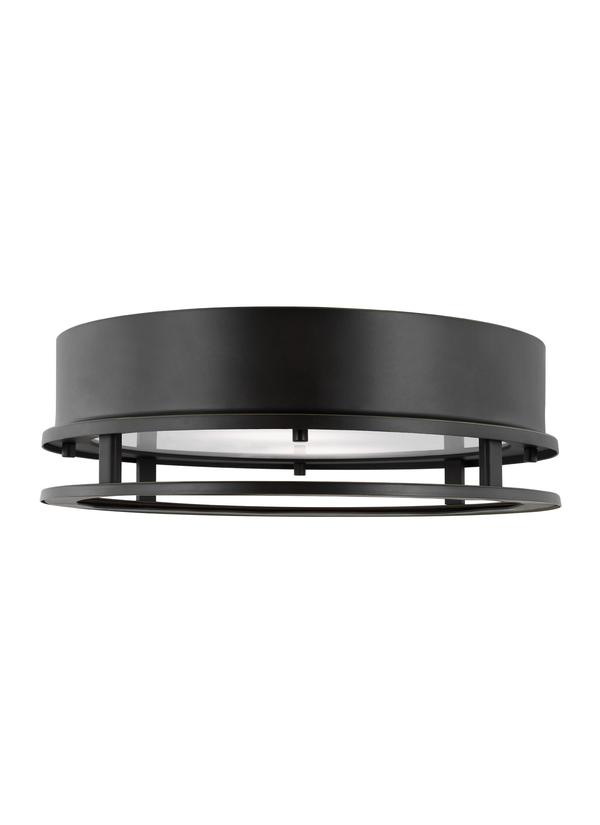

7845893S-71: LED Outdoor Flush Mount

	Collection: Union
	UPC #:785652125492
	Finish: Antique Bronze (71)

Dimensions:


Diameter:	15''
Width:	15''
Height:	4 1/2''

Weight:

3.7 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Key Slots

Connection:

Mounted To Box

Bulb Type:

Modules

Bulb Base:

Integrated

Volts:

120

Watts:

Watts Consumed:

Watts Rated:

Hours Rated:

50000

Lumens:

330

Bulb Temp:

3000 °K

CRI:

Bulbs:

2 - LED Integrated Modules 14w Max. 120v - included

Features:

Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
Meets Title 24 energy efficiency standards
Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Antique Bronze

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (UNION_OD_FLUSH)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Acrylic

Frosted

5/32

14 5/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3			15

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8545893S-71	1	785652125492	17.6	17	6.3	1.091	4.85	0	Yes
Master Pack	7845893S-71	0	10785652125499
NJ Pallet		56		48	40	77	85.556	271.6		No
NV Pallet		56		48	40	77	85.556	271.6		No
