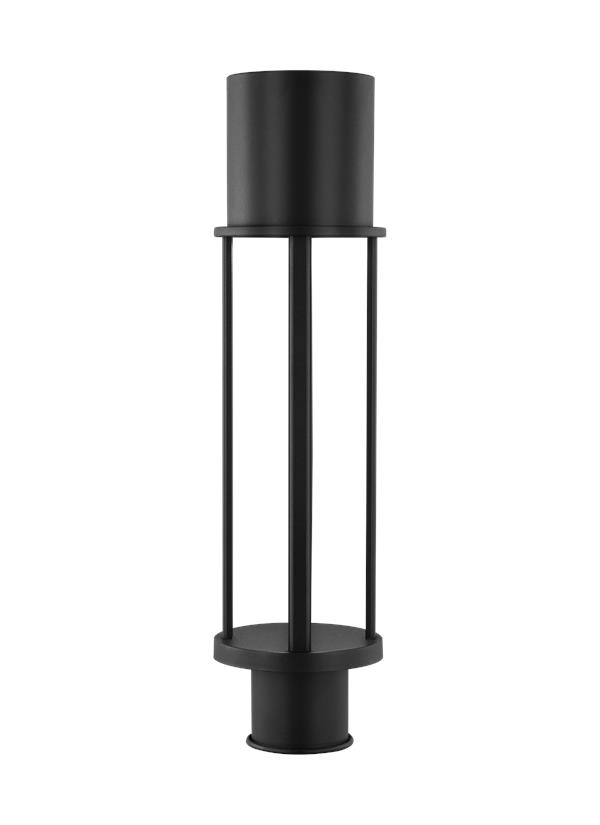

8245893S-12: LED Outdoor Post


Collection:  Union

UPC #:785652130533

Finish:   Black (12)
Dimensions:

Diameter: 5 3/8''
Width: 5 3/8''
Height: 21 1/4''
Weight: 2.2 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Post Mount
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 14
Watts Consumed: 14
Watts Rated: 14
Hours Rated: 50000
Lumens: 410
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 14w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (UNION_OD_POST)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Post 3      3
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8545893S-71 1  785652130533  23.7 8 7.9 0.867 2.85 0 Yes
Master Pack 8245893S-12 0  10785652130530
NJ Pallet   90    48 40 77 85.556 256.5 No
NV Pallet   90    48 40 77 85.556 256.5 No
