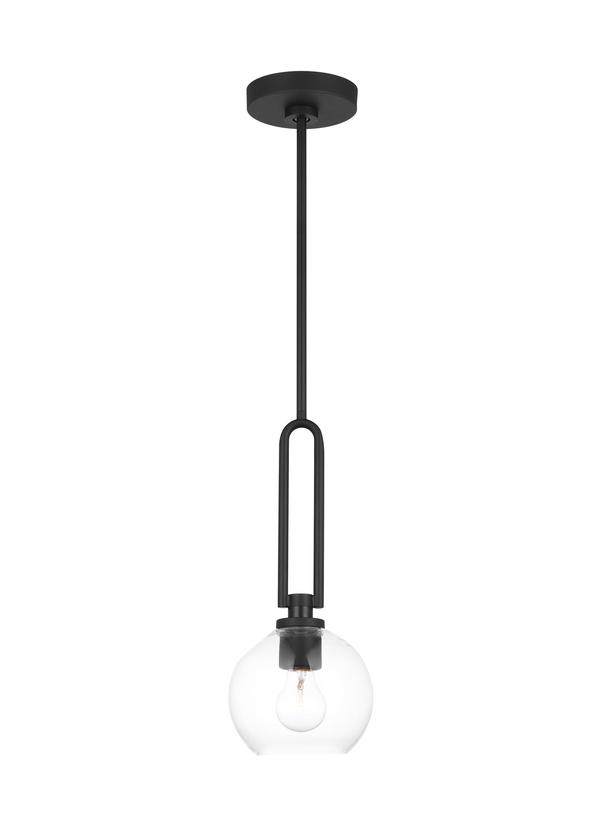

6155701-112: One Light Mini Pendant

	Collection: Codyn
	UPC #:785652123436
	Finish: Midnight Black (112)

Dimensions:


Diameter:	10''
Width:	10''
Height:	19 7/8''

Weight:

4.4 lbs.

Overall Height:

63 1/4''

Wire:

120'' (color/Black)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 75w Max. 120v - Not included

Features:

This product may be mounted on a sloped ceiling
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Midnight Black

3 12" Stem - Steel - Midnight Black

1 6" Stem - Steel - Midnight Black

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (6155701)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear

9 1/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6155701-112	1	785652123436	15.2	13.2	13	1.509	5.75	0	Yes
Master Pack	6155701-112	0	10785652123433
NJ Pallet		45		48	40	77	85.556	258.75		No
NV Pallet		45		48	40	77	85.556	258.75		No
