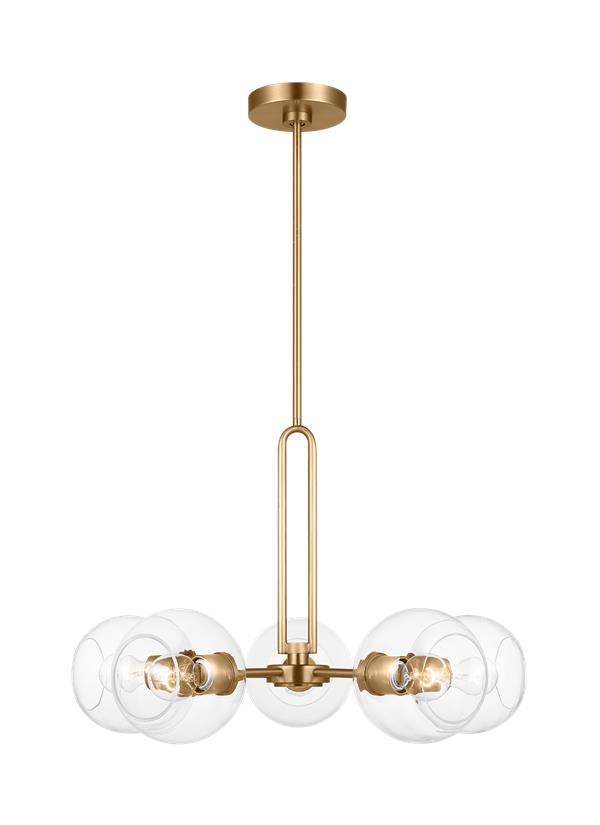

3155705-848: Five Light Medium Chandelier

	Collection: Codyn
	UPC #:785652123344
	Finish: Satin Brass (848)

Dimensions:


Diameter:	26''
Width:	26''
Height:	17 3/8''

Overall Height:

60 3/4''

Wire:

120'' (color/Clear Silver)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Bulbs:

5 - Medium A19 75w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Sloped ceiling mounting hardware included
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Steel - Satin Brass

3 12" Stem - Steel - Satin Brass

1 6" Stem - Steel - Satin Brass

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (3155705 3255705)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear

6 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5 1/2

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3155705-848	1	785652123344	23.3	19.1	13	3.348	11.15	0	Yes
Master Pack	3155705-848	0	10785652123341
NJ Pallet		22		48	40	77	85.556	245.3		No
NV Pallet		22		48	40	77	85.556	245.3		No
