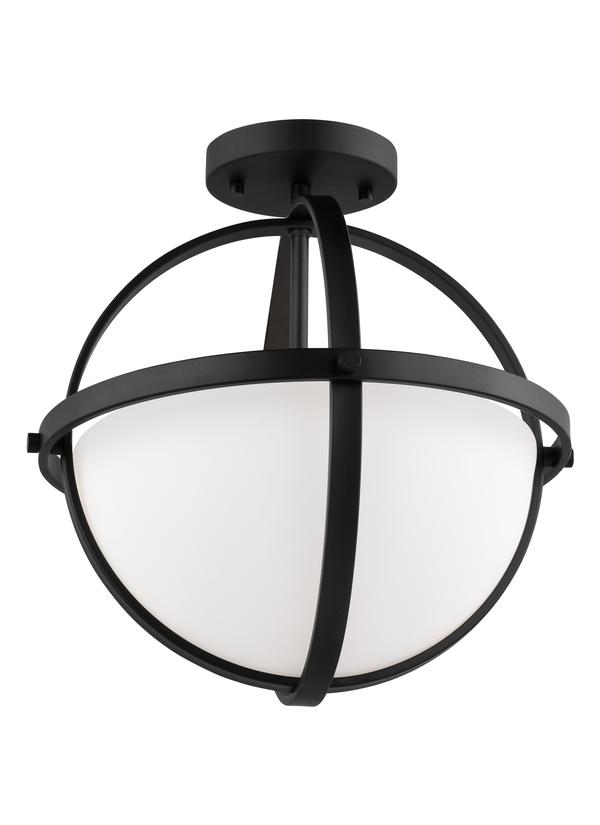

7724602EN3-112: Two Light Semi-Flush Convertible Pendant



Collection:  Alturas


Contemporary style fixture with a durable steel base is damp rated for use in covered outdoor areas

The Sea Gull Lighting Alturas two light indoor semi-flush convertible in Midnight Black is the perfect way to achieve your desired fashion or functional needs in your home. The silhouette of the modern Alturas lighting collection by Sea Gull Lighting features an interlocking, spherical steel frame, which harkens back to the Unisphere constructed for the 1964 New York World's Fair. The minimalist Alturas Collection draws the eye to the soft, warm glow of the light emitted from the cylindrical Satin Etched glass shades. The full assortment includes three-, five- and nine-light chandeliers, a one-light mini pendant, a three-light pendant, a two-light semi flush which is convertible into a pendant, and one-, two-, three- and four-light bath fixtures. All fixtures are offered in Brushed Oil Rubbed Bronze, Brushed Nickel, Midnight Black and Satin Brass finishes, the bath fixtures are also offered in Chrome finish. Incandescent and ENERGY STAR-qualified LED lamping are available; all fixtures are California Title 24 compliant.

Easy installation with pre-laced, adjustable 6-feet of wire and 3-feet of chain for preferred length for use on flat, slope, vaulted or cathedral ceilings complementing a kitchen, dining or living room

(2) 9-watt medium base light bulbs included with an ENERGY-STAR qualified option for replaceable eco-friendly lighting

UPC #:785652126765

Finish:   Midnight Black (112)

Dimensions:

Diameter: 14''
Height: 16 3/8''
Weight: 7 lbs.
Height Flush: 14 7/8''
Overall Height: 53 5/8''
Wire: 72'' (color/Black)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Midnight Black
1 Chain - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7724602-ALT)
Trilingual (English, Spanish, and French) (7724602)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560198-303     6 12
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7724602EN3-112 785652126765  16.1 15.7 13.1 1.916 9.2 0 Yes
Master Pack 7724602EN3-112 10785652126762
NJ Pallet   36    40 48 77 85.556 331.2 No
NV Pallet   36    40 48 77 85.556 331.2 No
