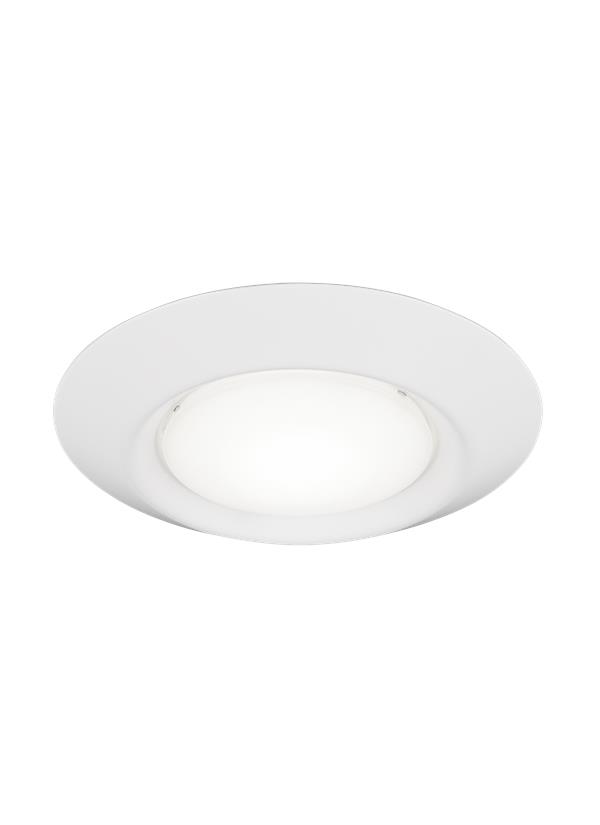

14550S-15: 6in Traverse Lyte Round T24 3000K 90CRI White



Collection:  Traverse LED Lyte


Dimming range: 5%-100%

Retrofit Kit 14795 may be purchased separately in 10pc sets.

Gasket 620390 may be purchased separately in 10pc sets.

Featured in the decorative Traverse LED Lyte collection

Bulb selection for recessed lighting depends on both the trim and housing selection; refer to the manufacturer's website for correct lamping instructions

ENERGY STARĀ® Qualified

This fixture is classified as a directional light source

This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.

UPC #:785652122545

Finish:   White (15)

Dimensions:

Diameter: 7 3/8''
Height: 1 1/16''
Weight: 0.45 lbs.
Wire: 6 1/2'' (color/Black/White)
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 13
Watts Consumed: 13
Watts Rated: 13
Hours Rated: 50000
Lumens: 850
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Modules 13w Max. 120v - included
Features:
  • Fixture may be mounted on wall or ceiling.
  • Product complies with NEC 410.16 code and is closet rated.
  • This fixture is classified as a directional light source
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - White
1 Trim - Aluminum - White
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990TRAVLYTE56)
English (990TRAVLYTE56T24)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Lens Polycarbonate Frosted 1       1/4 4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 14550S-15 785652122545  7.5 7.3 1.5 0.048 0.5 0 Yes
Master Pack 14550S-15 20  10785652122542  15.75 16.5 9.25 1.391 12.4 0 Yes
NJ Pallet   960    48 40 77 85.556 480 No
NV Pallet   960    48 40 72 80 597.6 No
