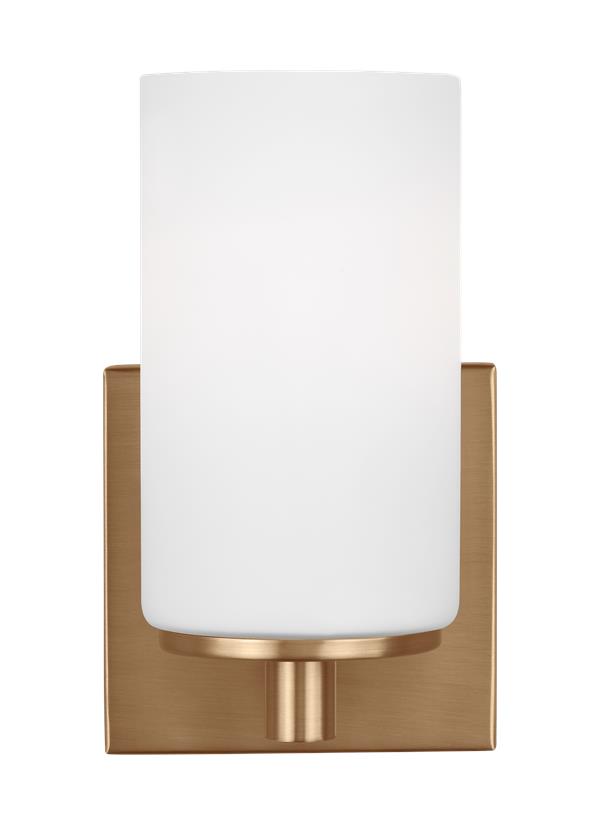

4139101-848: One Light Wall / Bath Sconce



Collection:  Hettinger


Round, modern style with tubular glass shade balances a decorative semi-circular arm detail for chic design elements and uses (1) 100-watt medium base light bulbs sold separately

The Sea Gull Lighting Hettinger one light wall sconce in Satin Brass provides abundant light for your bath vanity, while adding a layer of today's style to your interior design. The Hettinger lighting collection by Sea Gull Lighting combines a traditional look with chic, modern charm. The minimalism of the tubular glass shades balances with the unique, outward-curve of the semi-circular arm detail. Hettinger is available in three finishes - Bronze and Brushed Nickel for the whole collection, and Chrome, Midnight Black and Satin Brass for the bath vanities. The assortment includes six- and nine-light chandeliers; a one-light wall sconce; two-, three- and four-light bath vanity fixtures; a three-light pendant and two- light semi-flush convertible pendant. Incandescent and ENERGY STAR-qualified LED lamping are available; all fixtures are California Title 24 compliant.

The durable steel base and damp rated option offers a functional and transitional lighting option using (1) 100-watt medium base light sold separately

Easy installation for customizable mounting options both vertically or horizontally, complementing a bathroom, bedroom, entry room or hallway

UPC #:785652122378

Finish:   Satin Brass (848)

Dimensions:

Width: 4 1/2''
Height: 7 7/8''
Weight: 1.6 lbs.
Extends: 5''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4139101 4439102 4439103 4439104)
Trilingual (English, Spanish, and French) (990W4_3910_-HET)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560196-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  4 1/2  3/4    5 3/4  2 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4139101-848 785652122378  10.6 9.4 8 0.461 1.9 0 Yes
Master Pack 4139101-848 10785652122375
NJ Pallet   160    48 40 77 85.556 304 No
NV Pallet   160    48 40 77 85.556 304 No
