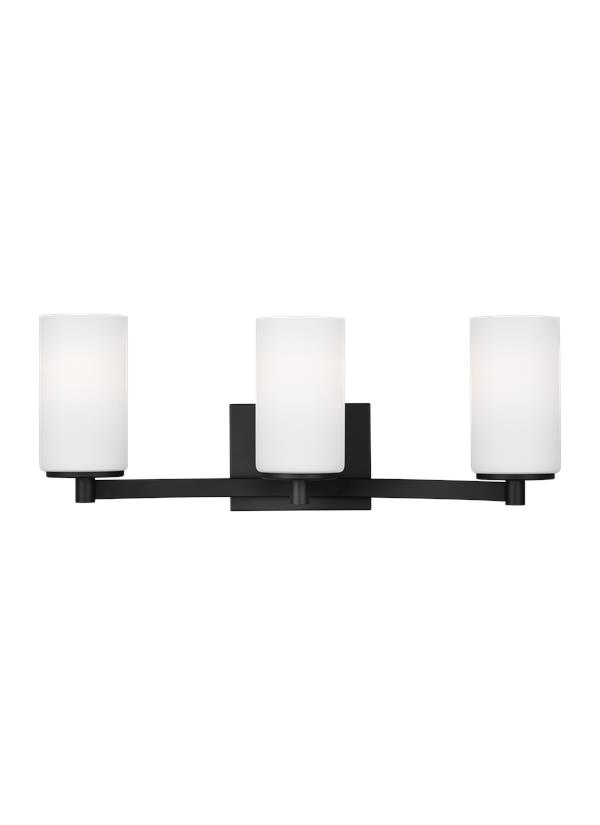

4439103EN3-112: Three Light Wall / Bath



Collection:  Hettinger


Round, modern style with tubular glass shade balances a decorative semi-circular arm detail for chic design elements

The Sea Gull Lighting Hettinger three light vanity fixture in Midnight Black provides abundant light for your bath vanity, while adding a layer of today's style to your interior design. The Hettinger lighting collection by Sea Gull Lighting combines a traditional look with chic, modern charm. The minimalism of the tubular glass shades balances with the unique, outward-curve of the semi-circular arm detail. Hettinger is available in three finishes - Bronze and Brushed Nickel for the whole collection, and Chrome, Midnight Black and Satin Brass for the bath vanities. The assortment includes six- and nine-light chandeliers; a one-light wall sconce; two-, three- and four-light bath vanity fixtures; a three-light pendant and two- light semi-flush convertible pendant. Incandescent and ENERGY STAR-qualified LED lamping are available; all fixtures are California Title 24 compliant.

Easy installation for customizable mounting options both vertically or horizontally

The durable steel base and damp rated option offers a functional and transitional piece with (3) 9-watt medium base light bulbs included for ENERGY-STAR qualified eco-friendly lighting

UPC #:785652122835

Finish:   Midnight Black (112)

Dimensions:

Width: 20 1/2''
Height: 7 7/8''
Weight: 4.3 lbs.
Extends: 6 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  3 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4139101 4439102 4439103 4439104)
Trilingual (English, Spanish, and French) (990W4_3910_-HET)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 3 G560196-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  3/4    5 3/4  2 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4439103EN3-112 785652122835  25.25 12 9.8 1.718 5.4 0 Yes
Master Pack 4439103EN3-112 10785652122832
NJ Pallet   48    48 40 76 84.444 259 No
NV Pallet   48    48 40 76 84.444 259 No
