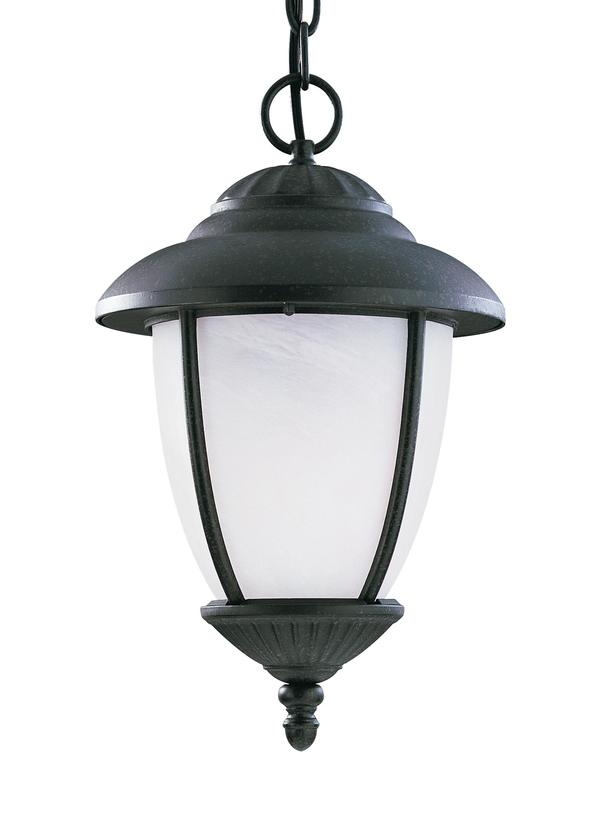

60048-185: One Light Outdoor Pendant



Collection:  Yorktown


One Light Outdoor Pendant Fixture in Forged Iron Finish with Swirled Marblelized Glass

Forged iron finish in die-cast aluminum with swirled marbleized glass makes a distinctive welcome message.

Design #: D30034; Includes 10' wire and 10' chain (not Pre-laced).

UPC #:785652600418

Finish:   Forged Iron (185)

Dimensions:

Diameter: 10''
Height: 17''
Weight: 6.3 lbs.
Overall Height: 139''
Wire: 120'' (color/Black)
Chain: 120''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Die Cast Aluminum - Forged Iron
1 Chain - Steel - Forged Iron
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-768)
French (F-015)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Swirled Marbleize 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     1 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 60048-185 785652600418  11.5 11.5 19.25 1.473 7.9 150 Yes
NJ Pallet   40    48 40 72 80 316 No
NV Pallet   30    48 40 72 80 237 No
