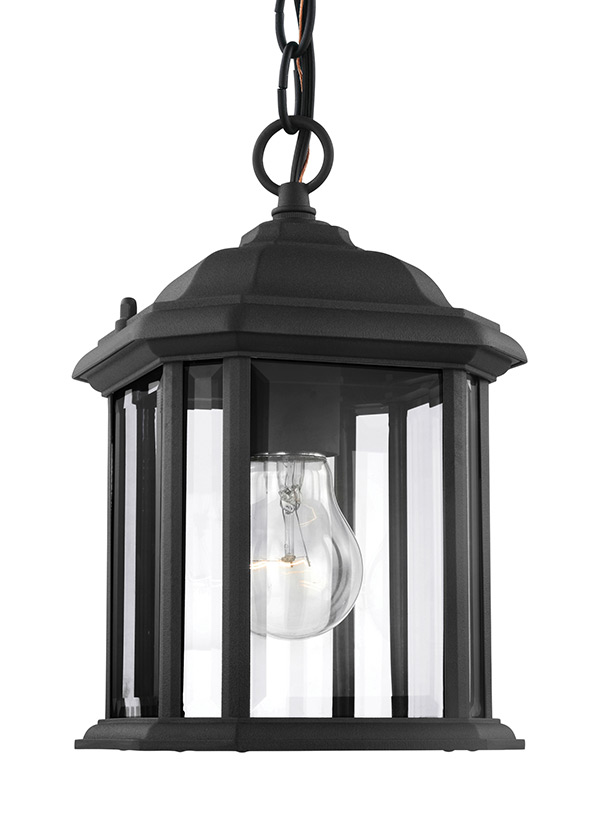

60029-12: One Light Outdoor Semi-Flush Convertible Pendant



Collection:  Kent


Outdoor pendant finished black over die-cast aluminum with clear beveled glass. Supplied with 10" of wire.

One Light Outdoor Convertible Pendant Lantern in Black Finish and Clear Beveled Glass.

Design #: D20030

Supplied with pre-laced, adjustable 10-feet of wire and 4 feet of chain for preferred length

Fixture can be mounted semi-flush or as a pendant for a customized look

Crafted in die-cast aluminum for added durability to withstand harsh weather conditions

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652600296

Finish:   Black (12)

Dimensions:

Length: 6 1/2"
Width: 6 1/2''
Height: 10 1/2''
Weight: 3.76 lbs.
Height Flush: 9 3/4''
Overall Height: 60''
Wire: 120'' (color/Black)
Chain: 48''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Black
1 Chain - Steel - Black
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-320)
French (F-015)
Trilingual (English, Spanish, and French) (990P60_29-KEN)
Trilingual (English, Spanish, and French) (60029)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Beveled 4
Panel Glass Clear Beveled 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5 3/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 60029-12 785652600296  8 8 13 0.481 5 0 Yes
Master Pack 60029-12 10785652600293
NJ Pallet   162    48 40 75 83.333 810 No
NV Pallet   112    48 40 72 80 560 No
