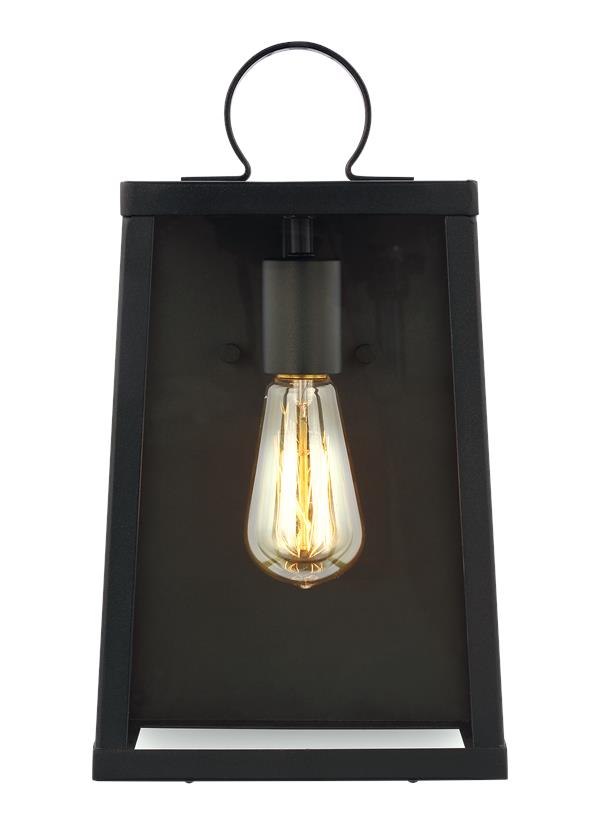

8637101EN7-12: Medium One Light Outdoor Wall Lantern

	Collection: Marinus
	Featured in the decorative Marinus collection
	1 A19 Medium 75 watt light bulb
	Clear glass panel and Clear glass panels
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652087332
	Finish: Black (12)

Dimensions:


Width:	7 3/4''
Height:	13 3/4''

Weight:

3.5 lbs.

Extends:

6 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

2700 °K

Bulbs:

1 - LED Medium A19 8w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990W8_37101-MAR)
Trilingual (English, Spanish, and French) (8537101 8637101 8737101)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Clear

G560314-32

7 1/8

10 7/8

Panel

Glass

Clear

G560315-32

5 1/2

10 7/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5 1/2	5 1/2	3/4		6

Replacement Bulb Data:

Product #

Type

Base

Watts

Watts Consumed

Volts

Hours

Lumens

Temp (°K)

CRI

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8637101EN7-12	1	785652087332	16.4	11	12.1	1.263	5.15	0	Yes
Master Pack	8637101EN7-12	0	10785652087339
NJ Pallet		54		48	40	77	85.556	278		No
NV Pallet		54		48	40	77	85.556	278		No
