7514503EN-710: Three Light Ceiling Flush Mount



Collection:  Belton

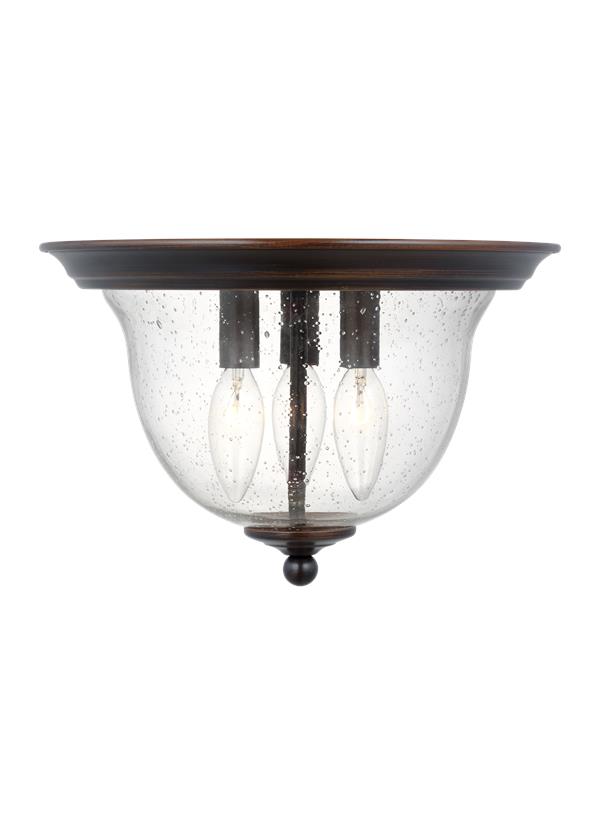

Three Light Flush Mount Fixture in Heirloom Bronze Finish with Satin Etched Glass Shade

3 - LED E12 Candelabra Torpedo 3.5w Max. Max. 120v - Included

Influenced by the vintage industrial designs of early 20th Century America, the transitional Belton lighting collection by Sea Gull has seeded glass shades and a rich Bronze or Brushed Nickel finish, adding a layer of retro design to the warm look. The assortment includes three- and five- down light chandeliers; five-light upright chandelier; a four-light island pendant; one-light pendant; one-light mini pendant; and one-, two-, three- and four-light bath fixtures. All fixtures are California Title 24 compliant.

Satin Etched Glass Shade

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

1-year manufacturer warranty

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

UPC #:785652090523

Finish:   Bronze (710)

Dimensions:

Diameter: 11 1/4''
Height: 7 1/2''
Weight: 2.64 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Pipe
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  3 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (7514503)
Trilingual (English, Spanish, and French) (7514503)
Trilingual (English, Spanish, and French) (990C7514503-BEL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Glass Clear Seeded 1 G560288-67     5 5/8 8 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     11 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7514503EN-710 785652090523  13.6 13.7 9.3 1.003 4 0 Yes
Master Pack 7514503EN-710 10785652090520
