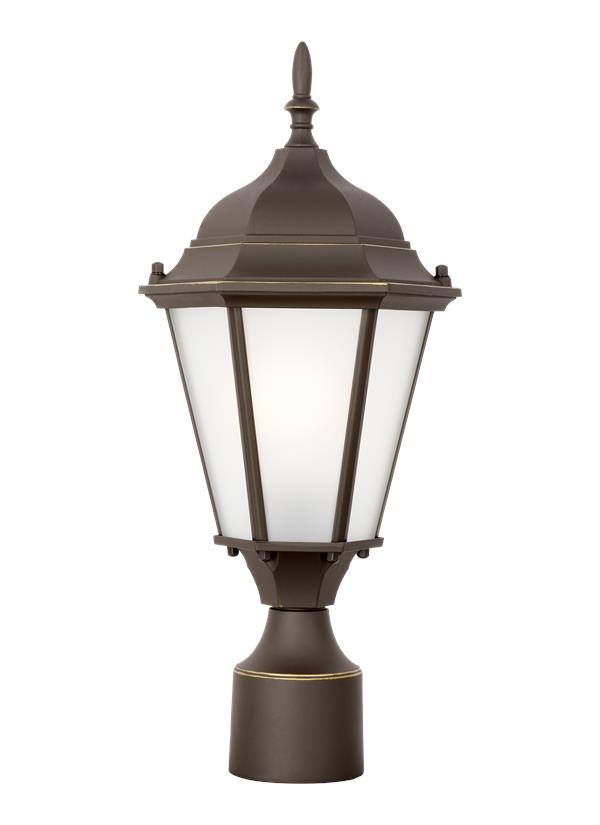

82941EN3-71: One Light Outdoor Post Lantern

	Collection: Bakersville
	Featured in the decorative Bakersville collection
	1 A19 Medium 100 watt light bulb
	satin etched glass panels
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652091391
	Finish: Antique Bronze (71)

Dimensions:


Diameter:	7 7/8''
Height:	17 7/8''

Weight:

2.12 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Post Mount

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Antique Bronze

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (82938 82941)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Satin Etched

G510136-619

3 9/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Post	4 1/8			3 1/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	82941EN3-71	1	785652091391	14.8	9.7	9.4	0.781	2.85	0	Yes
Master Pack	82941EN3-71	0	10785652091398
NJ Pallet		96		48	40	77	85.556	276.6		No
NV Pallet		96		48	40	77	85.556	276.6		No
