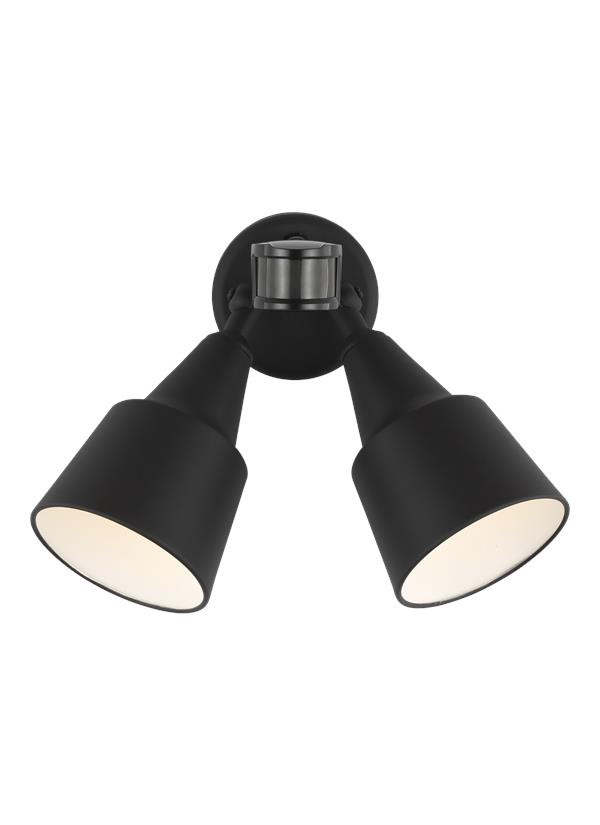

8560702PM-12: Two Light Flood with Photo and Motion Sensor



Collection:  Flood Light


Double adjustable swivel flood light in black aluminum for outdoor use.

Featured in the decorative Flood Light collection

2 PAR30 Medium 75 watt light bulb

black aluminum shades

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652092848

Finish:   Black (12)

Dimensions:

Width: 22 1/2''
Height: 12 1/2''
Weight: 2.8 lbs.
Extends: 11 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  2 - Medium PAR30 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Photocell included with this outdoor fixture for nightime control
  • Adjust motion sensitivity from 10 to 60 feet distance, with a 1 to 10 minute timer, and a 180° detection range.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
2 Swivel Support - Aluminum - Black
1 Canopy - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (ES-180NX3-2VR-10M-D2DIS)
English (ES-180NX3-2VR)
English (8560701 8560701PM 8560702 8560702PM)
Trilingual (English, Spanish, and French) (8560702)
Trilingual (English, Spanish, and French) (8560701 8560701PM 8560702 8560702PM)
Trilingual (English, Spanish, and French) (990W856070_-FLD)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Aluminum Black 2       7 1/2 5 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     1 1/4  5 1/4  2 5/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8560702PM-12 785652092848  14.8 17.2 10.1 1.488 3.8 0 Yes
Master Pack 8560702PM-12 10785652092845
NJ Pallet   46    77 40 48 85.556 174.8 No
NV Pallet   46    77 40 48 85.556 174.8 No
