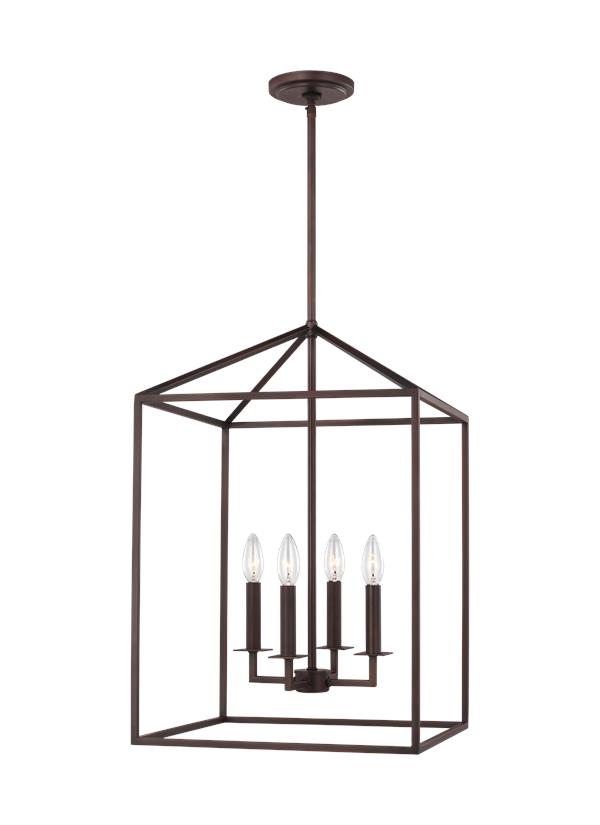

5115004EN-710: Medium Four Light Hall / Foyer



Collection:  Perryton


Mounts to flat or sloped ceilings with sloped ceiling mounting hardware included

The transitional Perryton pendant lights by Sea Gull Collection are inspired by stately carriage lanterns. The updated open frame is formed with sleek square steel tubing, and each pendant is a generously proportioned, minimalist silhouette completed in either Midnight Black or Bronze finishes. Offered are small and large four-light hall/foyer pendants, an eight-light hall/foyer pendant and an eight-light island pendant. Incandescent candelabra base lamping. Damp rated, Perryton is also ideal as a focal point on a covered patio or porch.

Light is dimmable, to create desired ambiance

Includes two sets of candle covers in Chrome and Cream finishes

Damp Rated

1 Year Warranty

UPC #:785652091049

Finish:   Bronze (710)

Dimensions:

Length: 15 1/2"
Width: 15 1/2''
Height: 23 1/4''
Weight: 7.9 lbs.
Overall Height: 69 3/4''
Wire: 120'' (color/Brown)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  4 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Bronze
3 12" Stem - Steel - Bronze
1 6" Stem - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (5115004 5115008 5215004 5315008)
Trilingual (English, Spanish, and French) (5115004 5115008 5215004 5315008)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5115004EN-710 785652091049  26.75 18.5 18.5 5.298 11.6 0 Yes
Master Pack 5115004EN-710 10785652091046
NJ Pallet   12    48 40 77 85.556 139.2 No
NV Pallet   12    48 40 77 85.556 139.2 No
