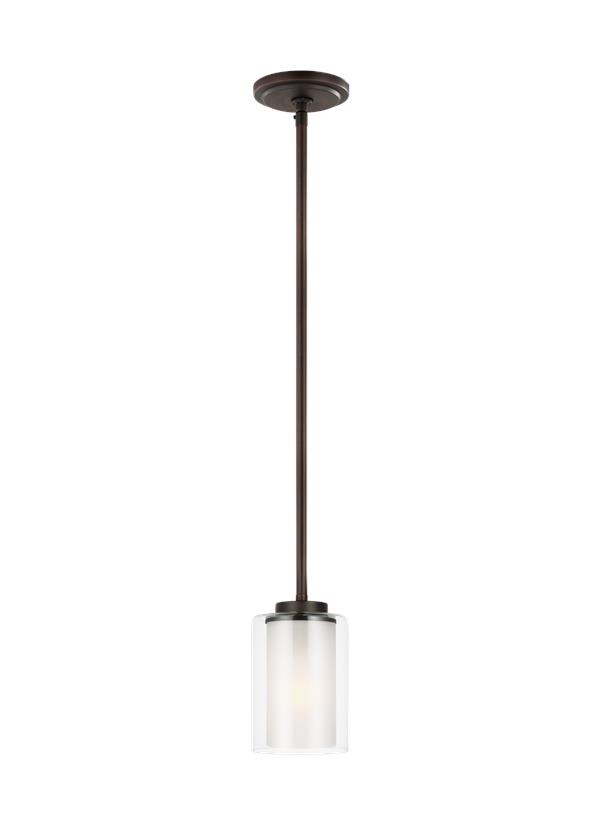

6137301EN3-710: One Light Mini-Pendant

	Collection: Elmwood Park
	Featured in the decorative Elmwood Park collection
	1 A19 Medium 9.3 watt light bulb
	Fixture is supplied with 1 light bulb
	Satin Etched glass shade and Clear glass shade
	ENERGY STAR® Qualified
	UPC #:785652090615
	Finish: Bronze (710)

Dimensions:


Diameter:	4 3/8''
Height:	6 7/8''

Weight:

2.65 lbs.

Overall Height:

51 1/4''

Wire:

72'' (color/Brown)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Sloped ceiling mounting hardware included
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Bronze

3 12" Stem - Steel - Bronze

1 6" Stem - Steel - Bronze

Safety Listing:

Safety Listed for Damp Locations

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

5 1/2

3 1/8

Shade

Glass

Clear

5 7/8

4 3/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6137301EN3-710	1	785652090615	16	15	15	2.083	3.6	0	Yes
Master Pack	6137301EN3-710	4	10785652090612	16.3	15.1	15	2.137	14.45	0	Yes
NJ Pallet		96		48	40	76	84.444	1.387		No
NV Pallet		96		48	40	76	84.444	40		No
