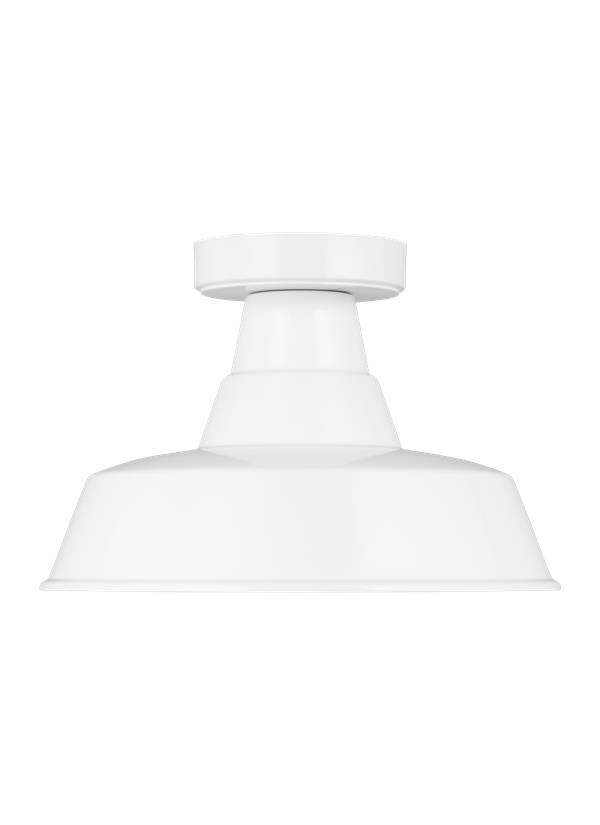

7837401EN3-15: One Light Outdoor Flush Mount


Collection:  Barn Light

Featured in the decorative Barn Light collection

1 PAR20 Medium 7 watt light bulb

Fixture is supplied with 1 light bulb

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Meets Title 24 energy efficiency standards

UPC #:785652098055

Finish:   White (15)
Dimensions:

Diameter: 12''
Height: 7 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (7836701)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7837401EN3-15 1  785652098055  14.4 10.5 14.1 1.234 2.26 0 Yes
Master Pack 7837401EN3-15 0  10785652098052
NJ Pallet   60    48 40 76 84.444 159 No
NV Pallet   60    48 40 76 84.444 159 No
