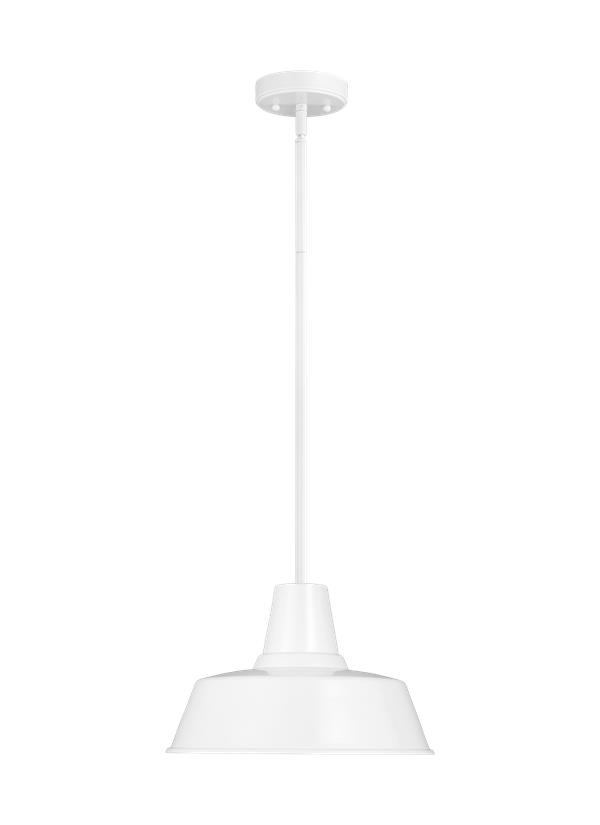

6237401EN3-15: One Light Outdoor Pendant


Collection:  Barn Light

Featured in the decorative Fredricksburg collection

1 A19 Medium 100 watt light bulb

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652097973

Finish:   White (15)
Dimensions:

Diameter: 14''
Height: 9''
Wire: 120'' (color/Black)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - White
3 12" Stem - Aluminum - White
1 6" Stem - Aluminum - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6237401)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Aluminum White 1       9 1/8 14
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/8      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6237401EN3-15 1  785652097973  15.9 16.5 11.9 1.807 4.5 0 Yes
Master Pack 6237401EN3-15 0  10785652097970
NJ Pallet   32    48 40 76 84.444 144 No
NV Pallet   32    48 40 76 84.444 144 No
