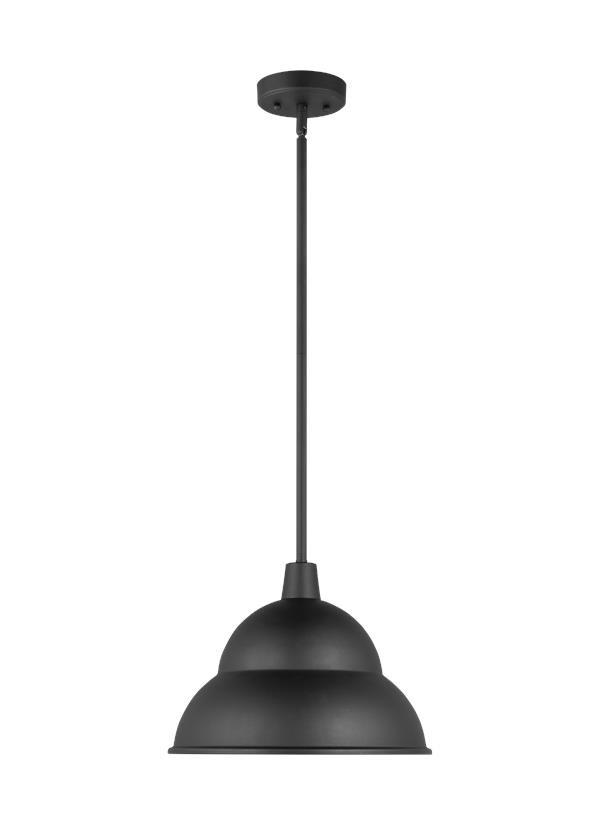

6236701EN3-12: One Light Outdoor Pendant

	Collection: Barn Light
	Featured in the decorative Fredricksburg collection
	1 A19 Medium 100 watt light bulb
	Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
	Easily converts to LED with optional replacement lamps
	Sloped ceiling mounting hardware included
	UPC #:785652097928
	Finish: Black (12)

Dimensions:


Diameter:	14''
Height:	10 1/4''

Wire:

120'' (color/Black)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

ENERGY STAR® Qualified
Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Aluminum - Black

3 12" Stem - Aluminum - Black

1 6" Stem - Aluminum - Black

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (6237401)

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/8			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6236701EN3-12	1	785652097928	15.8	16	10.7	1.565	4.5	0	Yes
Master Pack	6236701EN3-12	0	10785652097925
NJ Pallet		36		48	40	78	86.667	163.8		No
NV Pallet		36		48	40	78	86.667	163.8		No
