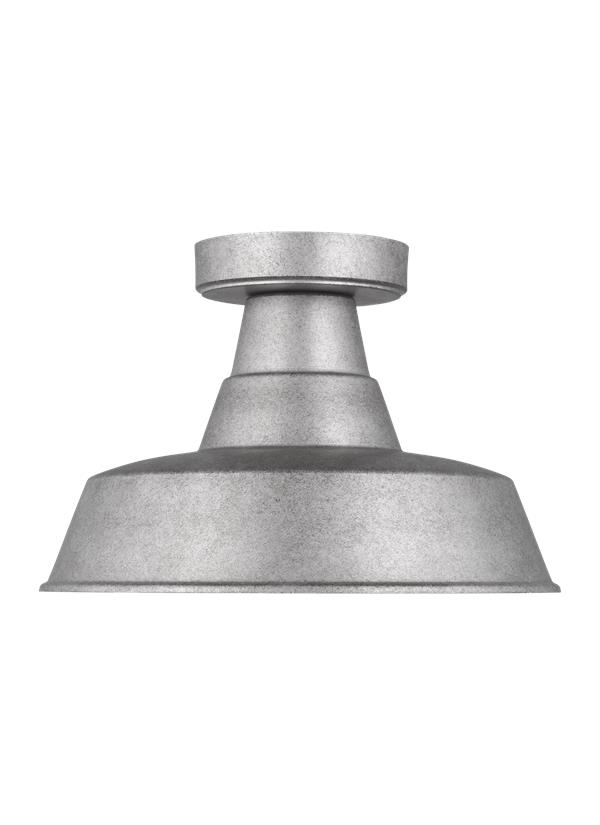

7837401-57: One Light Outdoor Flush Mount


Collection:  Barn Light

Featured in the decorative Barn Light collection

1 PAR20 Medium 7 watt light bulb

Fixture is supplied with 1 light bulb

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Meets Title 24 energy efficiency standards

UPC #:785652097751

Finish:   Weathered Pewter (57)
Dimensions:

Diameter: 12''
Height: 7 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Weathered Pewter
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (7836701)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7837401-57 1  785652097751  14.6 14 10.1 1.195 2.55 0 Yes
Master Pack 7837401-57 0  10785652097758
NJ Pallet   63    48 40 78 86.667 160.65 No
NV Pallet   63    48 40 78 86.667 160.65 No
