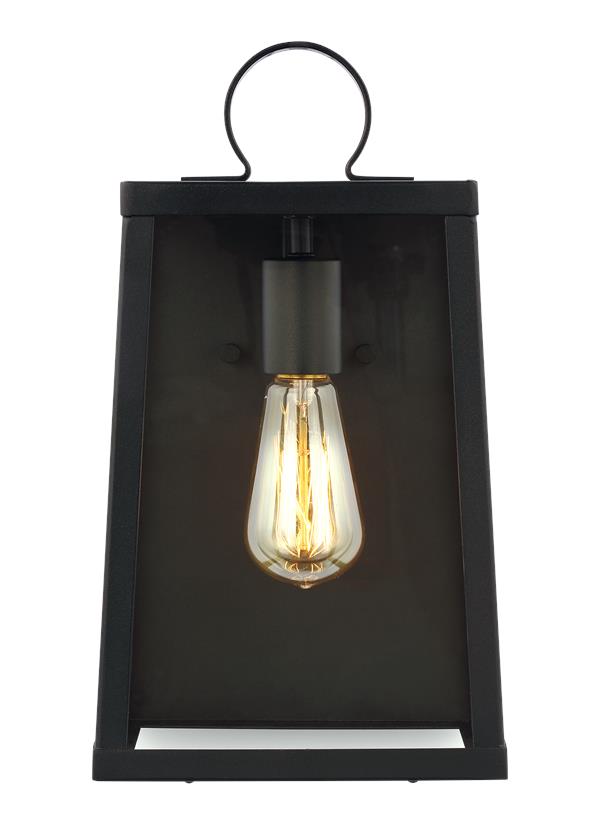

8637101-12: Medium One Light Outdoor Wall Lantern

	Collection: Marinus
	Featured in the decorative Marinus collection
	1 A19 Medium 75 watt light bulb
	Clear glass panel and Clear glass panels
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652086922
	Finish: Black (12)

Dimensions:


Width:	7 3/4''
Height:	13 3/4''

Weight:

3.5 lbs.

Extends:

6 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 75w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990W8_37101-MAR)
Trilingual (English, Spanish, and French) (8537101 8637101 8737101)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Clear

G560314-32

7 1/8

10 7/8

Panel

Glass

Clear

G560315-32

5 1/2

10 7/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	5 1/2	5 1/2	3/4		6

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8637101-12	1	785652086922	16.4	11	12.1	1.263	5.15	0	Yes
Master Pack	8637101-12	0	10785652086929
NJ Pallet		54		48	40	77	85.556	278.1		No
NV Pallet		60		48	40	73	81.111	318		No

	Job Name:	Job Type:
	Comments:	Quantity:
