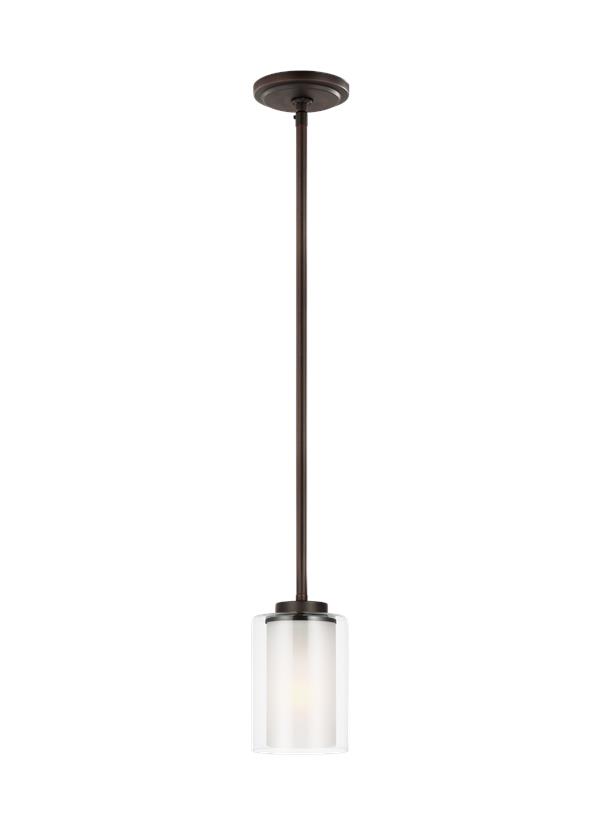

6137301-710: One Light Mini-Pendant


Collection:  Elmwood Park

Featured in the decorative Elmwood Park collection

1 A19 Medium 75 watt light bulb

Satin Etched glass shade and Clear glass shade

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652089534

Finish:   Bronze (710)
Dimensions:

Diameter: 4 3/8''
Height: 6 7/8''
Weight: 2.65 lbs.
Overall Height: 51 1/4''
Wire: 72'' (color/Brown)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
3 12" Stem - Steel - Bronze
1 6" Stem - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6137301)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       5 1/2 3 1/8
Shade Glass Clear 1       5 7/8 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3113704-778 1  785652089534  15.4 7.8 7.2 0.501 3.25 0 Yes
Master Pack 6137301-710 4  10785652089531  16.3 15.1 15 2.137 14.45 0 Yes
NJ Pallet   96    48 40 76 84.444 1.387 No
NV Pallet   96    48 40 76 84.444 1.387 No
