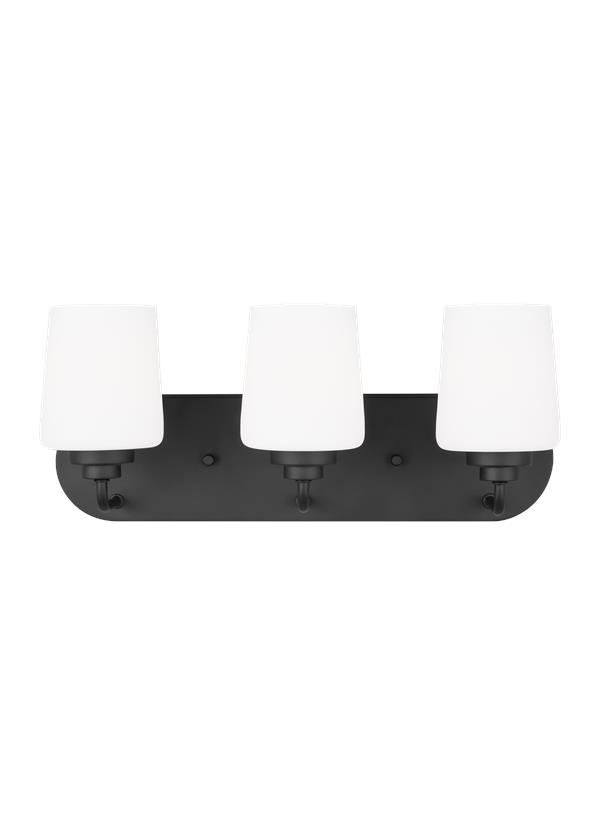

4402803-112: Three Light Wall / Bath



Collection:  Windom

One Light Wall/Bath in Chrome Finish with Alabaster Glass Shades

Featured in the decorative Windgate collection

1 A19 Medium 100 watt light bulb

alabaster glass shade

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652095771

Finish:   Midnight Black (112)
Dimensions:

Width: 18''
Height: 7 1/2''
Weight: 4.2 lbs.
Extends: 6 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (4402803 4402804)
Trilingual (English, Spanish, and French) (4402803 4402804)
Trilingual (English, Spanish, and French) (990W440280_-WDM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 3       4 7/8 4 1/4 1 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 5/8  18  7/8    5 3/16  2 5/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4402803-112 1  785652095771  20.4 11.3 7.3 0.974 4.55 0 Yes
Master Pack 4402803-112 0  10785652095778
NJ Pallet   72    48 40 78 86.667 327.6 No
NV Pallet   72    48 40 78 86.667 327.6 No
