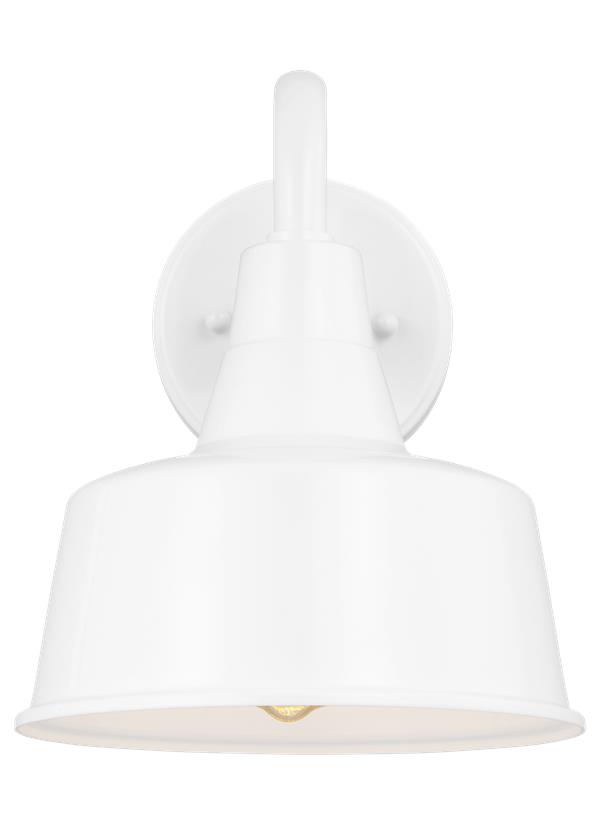

8537401EN3-15: Small One Light Outdoor Wall Lantern


Collection:  Barn Light

Featured in the decorative Barn Light collection

1 A19 Medium 75 watt light bulb

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652093456

Finish:   White (15)
Dimensions:

Diameter: 8''
Width: 8''
Height: 10''
Weight: 1.43 lbs.
Extends: 12 3/8''
Extends Max: 18 3/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - White
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (990W8_37401-BRL)
English (8537401 8637401 8737401 8837401)
Trilingual (English, Spanish, and French) (8537401 8637401 8737401 8837401)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     1 1/4  5  3 3/8  6 5/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8537401EN3-15 1  785652093456  11 12.4 11.3 0.892 2.7 0 Yes
Master Pack 8537401EN3-15 0  10785652093453
NJ Pallet   72    48 40 77 85.556 1944 No
NV Pallet   72    48 40 77 85.556 1944 No
