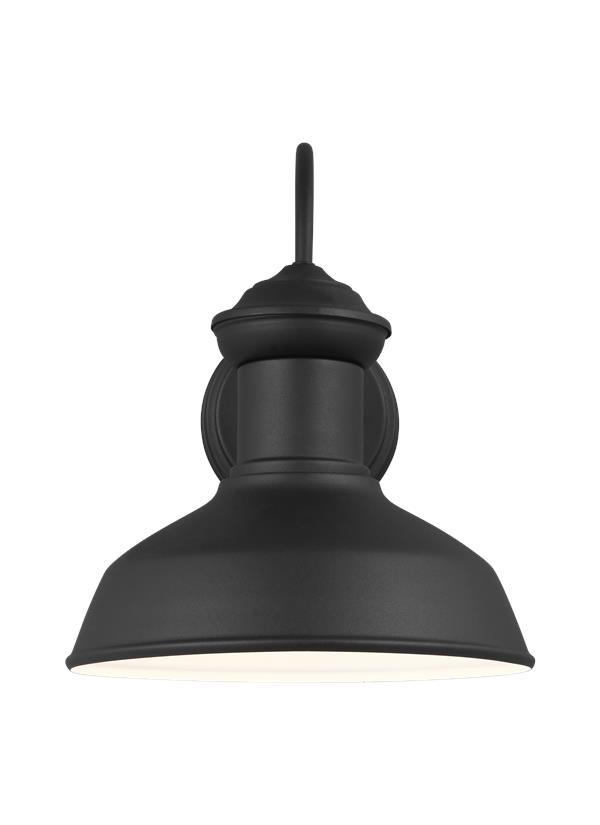

8547701EN3-12: Small One Light Outdoor Wall Lantern


Collection:  Fredricksburg

Supplied with 6-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Dark Sky approved light fixture minimize glare while reducing sky glow

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

UPC #:785652093425

Finish:   Black (12)
Dimensions:

Diameter: 10''
Width: 10''
Height: 11 15/16''
Weight: 2.6 lbs.
Extends: 11 5/8''
Wire: 6'' (color/Black/White)
Mounting Proc.: Single Cap Nut
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_47701-FRB)
Trilingual (English, Spanish, and French) (8547701 8647701)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Aluminum Black 1       6 1/2 10
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     1 1/8  4 3/4  5 3/4  6 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8547701EN3-12 1  785652093425  13.4 15 12.1 1.407 2.8 0 Yes
Master Pack 8547701EN3-12 0  10785652093422
NJ Pallet   45    48 40 77 85.556 126 No
