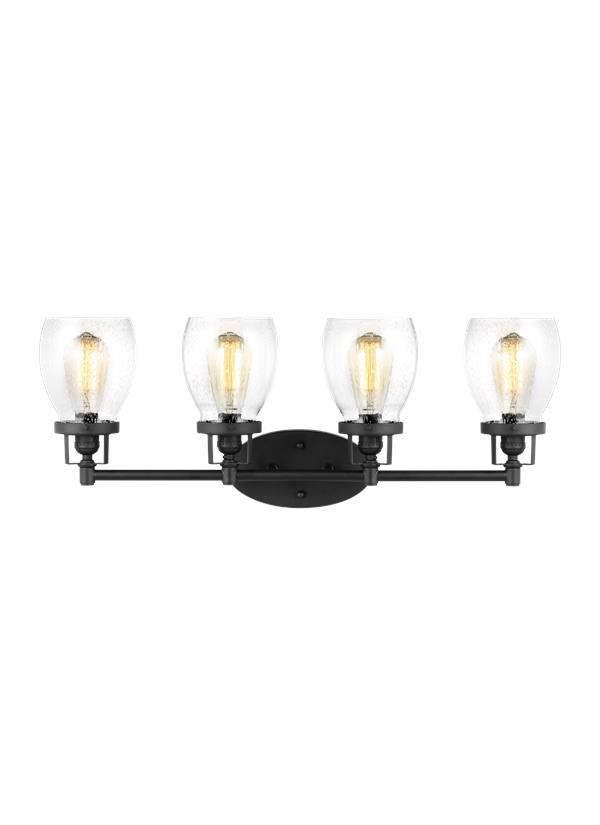

4414504EN7-112: Four Light Wall / Bath


Collection:  Belton

Traditional iron forms and casual styling available in three finishes

4 A19 Medium 60 watt light bulbs

Clear seeded glass shades

Fixture may be mounted in the up or down position

Meets Title 24 energy efficiency standards

UPC #:785652093340

Finish:   Midnight Black (112)
Dimensions:

Width: 28 3/4''
Height: 10 5/8''
Weight: 5.8 lbs.
Extends: 6 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  4 - LED Medium A19 8w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (4114501 4414502 4414503 4414504)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Seeded 4 G560215-67     6 1/8 5 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  8 3/8  7/8    8 3/8  2 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4414504EN7-112 1  785652093340  29.7 13.7 8.9 2.096 7.6 0 Yes
Master Pack 4414504EN7-112 0  10785652093347
NJ Pallet   30    48 40 78 86.667 240 No
