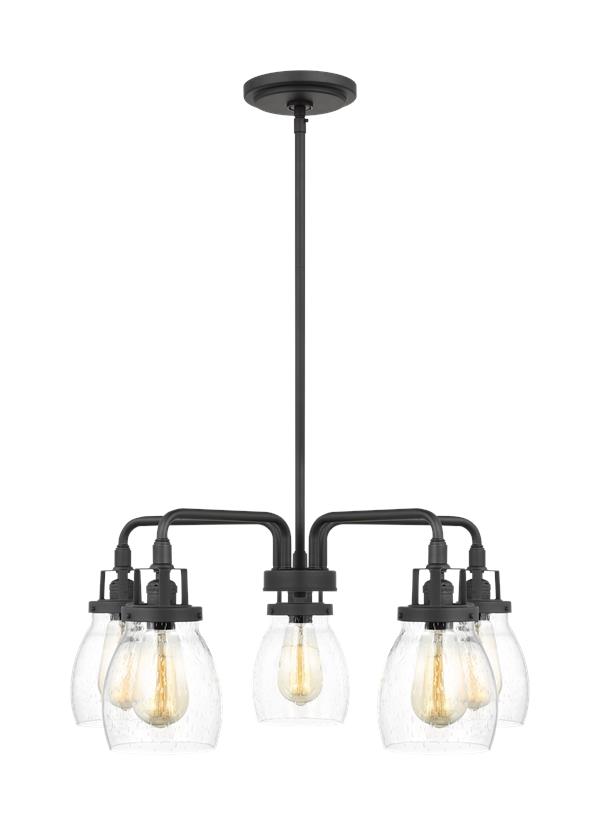

3114505EN7-112: Five Light Chandelier



Collection:  Belton

Supplied with adjustable 6-feet of wire for preferred length

Mounting hardware included for use on flat, slope, vaulted or cathedral ceilings

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652093296

Finish:   Midnight Black (112)
Dimensions:

Diameter: 23 7/8''
Width: 23 7/8''
Height: 10 1/2''
Weight: 9.1 lbs.
Overall Height: 52 1/4''
Wire: 72'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  5 - LED Medium A19 8w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Midnight Black
3 12" Stem - Steel - Midnight Black
1 6" Stem - Steel - Midnight Black
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (3114505 3114503)
Trilingual (English, Spanish, and French) (3114503 3114505)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Seeded 5 G560215-67     6 1/8 5 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3114505EN7-112 1  785652093296  13.8 25.5 9.8 1.996 11.7 0 Yes
Master Pack 3114505EN7-112 0  10785652093293
NJ Pallet   28    48 40 77 85.556 327.6 No
NV Pallet   28    48 40 77 85.556 327.6 No
