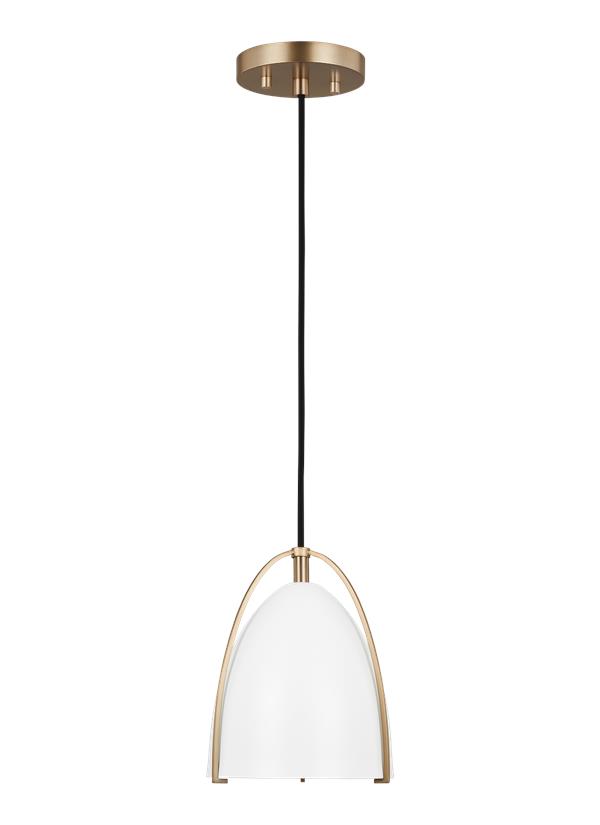

6151801EN3-848: One Light Mini-Pendant


Collection:  Norman

Interior of shade is Matte White

Traditional iron forms and casual styling available in three finishes

1 A19 Medium 75 watt light bulb

Finish options include: Midnight Black with Chrome or Satin Brass hardware and Matte White with Chrome or Satin Brass hardware

Assortment includes: one-light pendant in four finish options.

Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

UPC #:785652093029

Finish:   Satin Brass (848)
Dimensions:

Diameter: 6 1/4''
Width: 6 1/4''
Height: 7 1/2''
Weight: 1.8 lbs.
Overall Height: 73 1/4''
Wire: 72'' (color/Black)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
1 Shade - Steel - Matte White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6151701 6151801)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Matte White 1       6 1/2 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6151801EN3-848 1  785652093029  6.7 11.2 8.9 0.386 2.7 0 Yes
Master Pack 6151801EN3-848 0  10785652093026
NJ Pallet   112    48 40 76 84.444 302 No
NV Pallet   112    48 40 76 84.444 302 No
