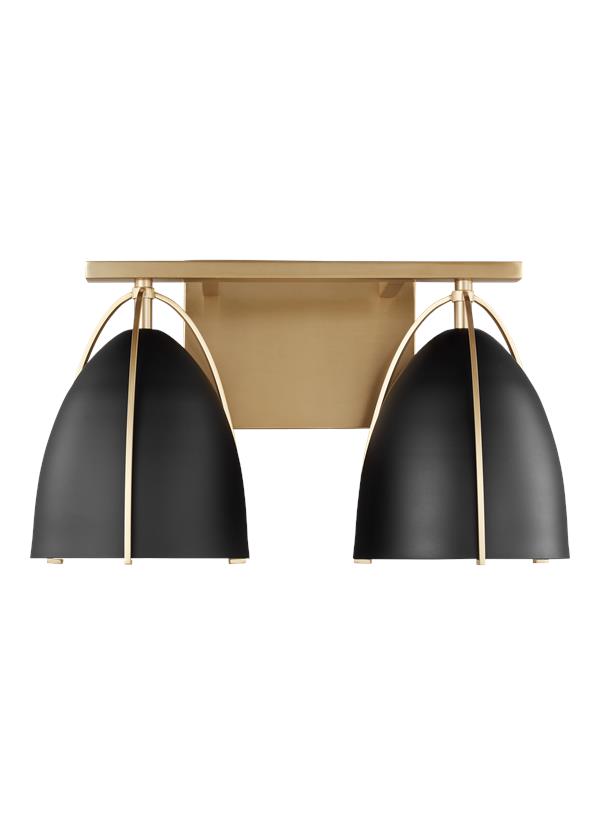

4451702EN3-848: Two Light Wall / Bath


Collection:  Norman

Interior of shades are Matte White

Traditional iron forms and casual styling available in three finishes

2 A19 Medium 60 watt light bulbs

Black steel shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652092930

Finish:   Satin Brass (848)
Dimensions:

Width: 15''
Height: 8 7/8''
Weight: 3.3 lbs.
Extends: 7 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  2 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
2 Shade - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4451702 4451802 4451703 4451803)
Trilingual (English, Spanish, and French) (4451702 4451802 4451703 4451803)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Midnight Black 2       6 1/2 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  7  3/4    6 3/8  2 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4451702EN3-848 1  785652092930  6.3 19.5 12 0.853 5.2 0 Yes
Master Pack 4451702EN3-848 0  10785652092937
