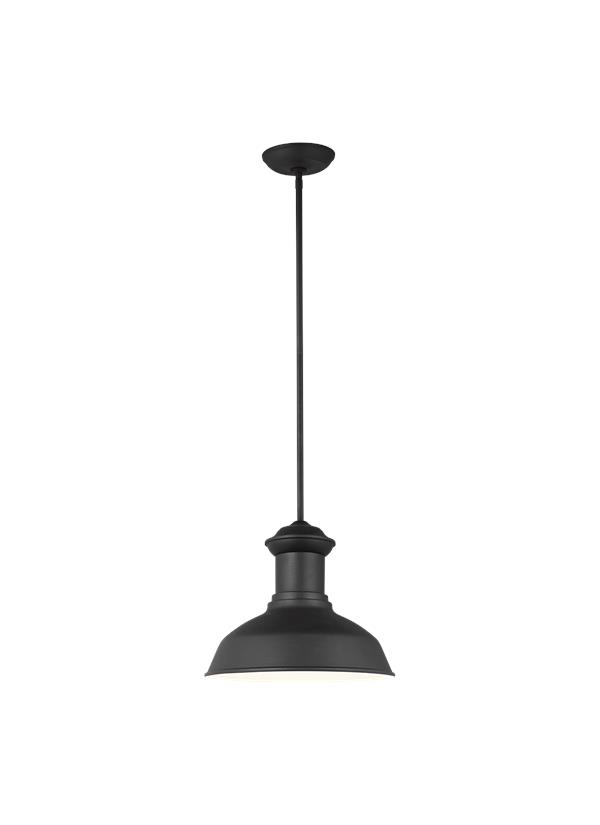

6247701-12: One Light Outdoor Pendant


Collection:  Fredricksburg

Featured in the decorative Fredricksburg collection

1 A19 Medium 100 watt light bulb

Dark sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652092725

Finish:   Black (12)
Dimensions:

Diameter: 13 1/4''
Height: 11 5/16''
Weight: 3.8 lbs.
Overall Height: 56 1/8''
Wire: 120'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
3 12" Stem - Steel - Black
1 6" Stem - Steel - Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (990P6247701-FRB)
English (6247701)
Trilingual (English, Spanish, and French) (6247701)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Aluminum Black 1       5 3/4 13 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/8      5 13/32
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6247701-12 1  785652092725  16.6 16 14.2 2.183 4.7 0 Yes
Master Pack 6247701-12 0  10785652092722
NJ Pallet   36    48 40 75 83.333 169.2 No
NV Pallet   36    48 40 75 83.333 169.2 No
