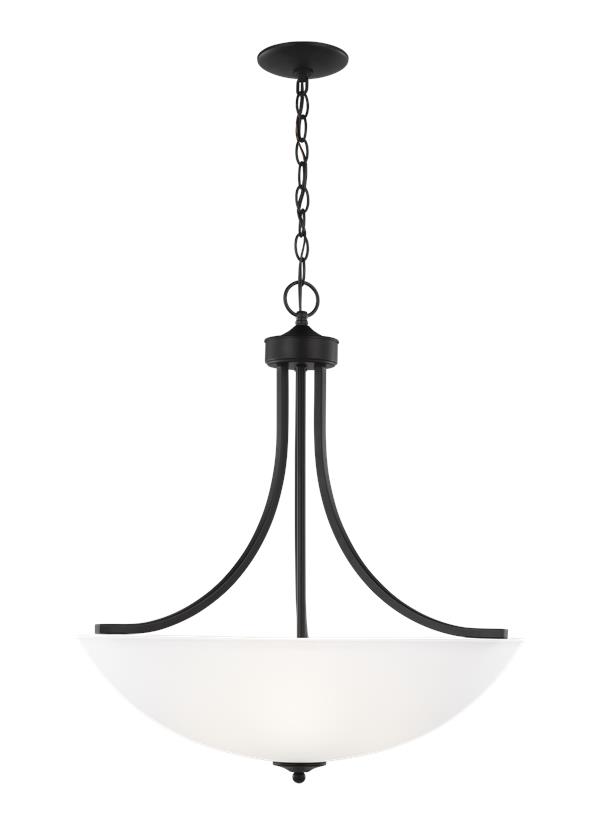

6616504-112: Large Four Light Pendant


Collection:  Geary

Featured in the decorative Geary collection

4 A19 Medium 100 watt light bulbs

Satin Etched glass shade

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652086816

Finish:   Midnight Black (112)
Dimensions:

Diameter: 25''
Height: 27 1/8''
Weight: 16.9 lbs.
Overall Height: 101''
Wire: 120'' (color/Black)
Chain: 72''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Midnight Black
1 Chain - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6616504 6616503)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1 G560320-619     6 3/4 24
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6616504-112 1  785652086816  27.3 27.8 14.2 6.237 17.9 0 Yes
Master Pack 6616504-112 0  10785652086813
NJ Pallet   9    48 40 74 82.222 204.3 No
NV Pallet   9    48 40 74 82.222 204.3 No
