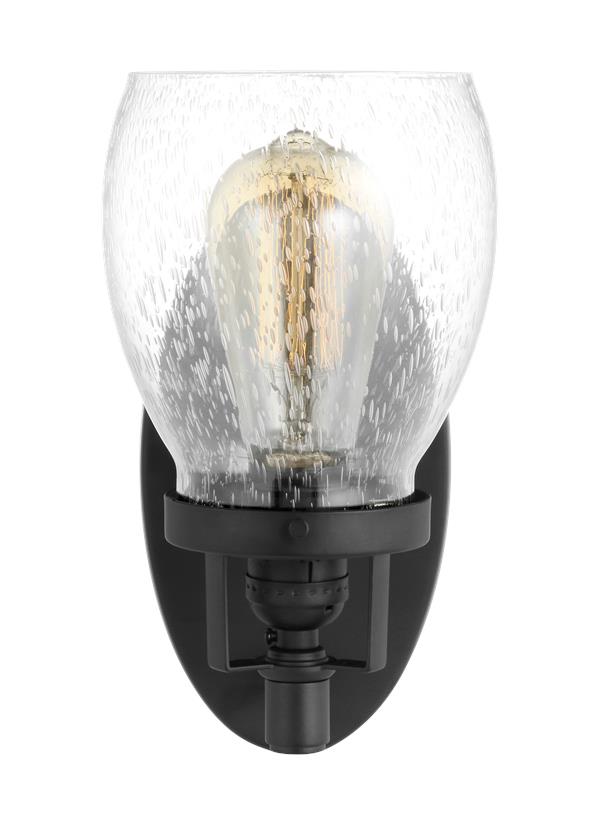

4114501-112: One Light Wall / Bath Sconce


Collection:  Belton

Traditional iron forms and casual styling available in three finishes

1 A19 Medium 60 watt light bulb

clear seeded glass shade

Fixture may be mounted in the up or down position

Meets Title 24 energy efficiency standards

UPC #:785652092596

Finish:   Midnight Black (112)
Dimensions:

Width: 5 3/8''
Height: 9 3/4''
Weight: 1.7 lbs.
Extends: 6 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 60w Max. 120v - Not included
Features:
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Vintage lamp(s) recommended for aesthetics
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4114501 4414502 4414503 4414504)
Trilingual (English, Spanish, and French) (4114501 4414502 4414503 4414504)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Seeded 1 G560215-67     6 1/8 5 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 8 3/8  4 1/2  7/8    5 1/2  4 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4114501-112 1  785652092596  9.1 12.4 8.2 0.535 2.5 0 Yes
Master Pack 4114501-112 4  10785652092593  11.8 19.6 17.34 2.321 12.05 0 Yes
NJ Pallet   128    48 40 75 83.333 160 No
NV Pallet   128    48 40 75 83.333 160 No
