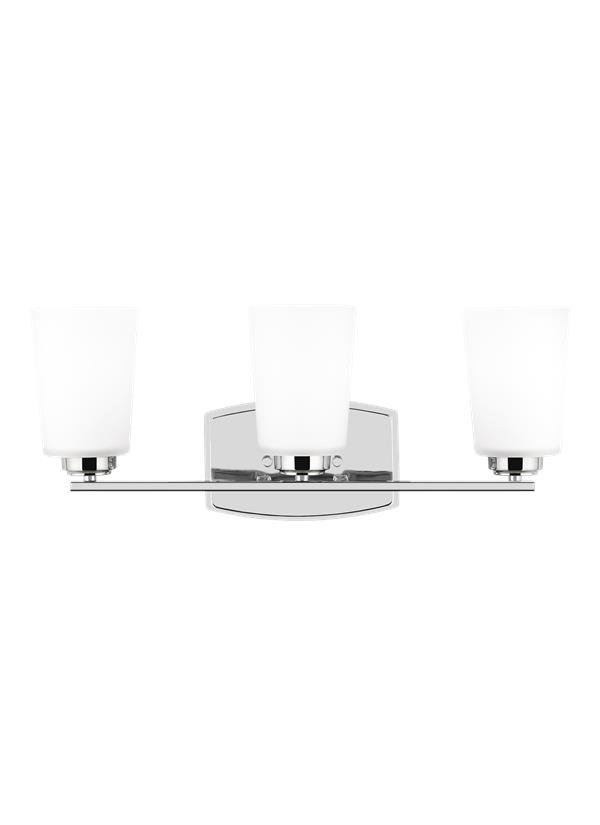

4428903-05: Three Light Wall / Bath



Collection:  Franport


Featured in the decorative Franport collection

3 A19 Medium 100 watt light bulbs

Etched / white inside glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652092442

Finish:   Chrome (05)

Dimensions:

Width: 21''
Height: 8 1/4''
Weight: 5.54 lbs.
Extends: 6 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4128901-442890_-FRA)
Trilingual (English, Spanish, and French) (4128901 4428902 4428903 4428904)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 3 G560292-303     5 3/4 4 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate   5 3/4  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4428903-05 785652092442  20.9 7.9 11.3 1.08 6.5 0 Yes
Master Pack 4428903-05 10785652092449
NJ Pallet   72    48 40 76 84.444 468 No
NV Pallet   72    48 40 76 84.444 468 No
