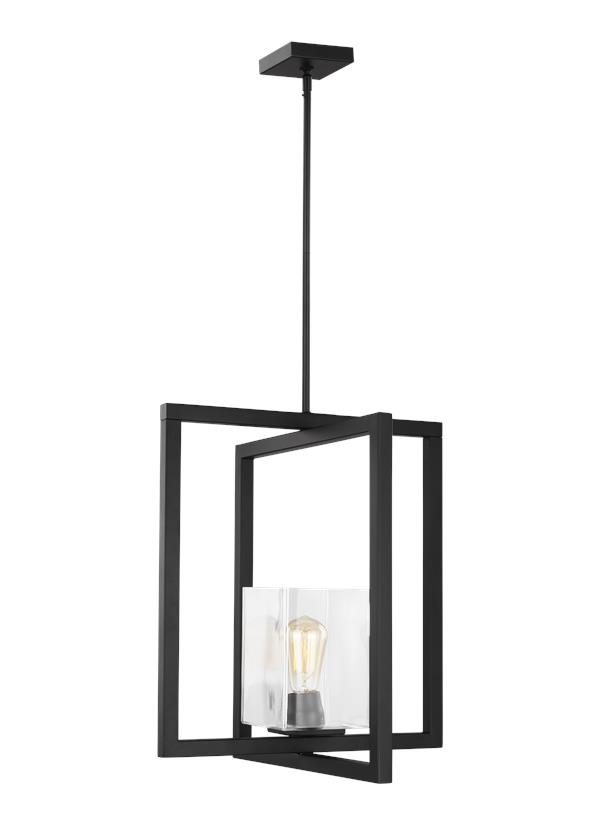

5141501-112: One Light Pendant



Collection:  Mitte


Featured in the decorative Mitte collection

1 A19 Medium 75 watt light bulb

Clear glass shade

Easily converts to LED with optional replacement lamp

Sloped ceiling mounting hardware included

UPC #:785652089053

Finish:   Midnight Black (112)

Dimensions:

Length: 16 1/2"
Width: 16 1/2''
Height: 19 1/4''
Weight: 10.1 lbs.
Overall Height: 67 1/4''
Wire: 180'' (color/Black)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  1 - Medium ST19 75w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Vintage lamp(s) recommended for aesthetics
Material List:
1 Body - Steel - Midnight Black
4 12" Stem - Steel - Midnight Black
1 6" Stem - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (5141501 5241504 5341504)
Trilingual (English, Spanish, and French) (5141501 5241504 5341504)
Trilingual (English, Spanish, and French) (990P5141501-MTE)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear 1   5 1/4 5 1/4 7 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/8  5 1/2  5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5241504-112 1  785652089053  23.2 19.7 9.4 2.486 13.35 0 Yes
Master Pack 5141501-112 0  10785652089050
NJ Pallet   28    48 40 75 83.333 373.8 No
NV Pallet   28    48 40 75 83.333 373.8 No
