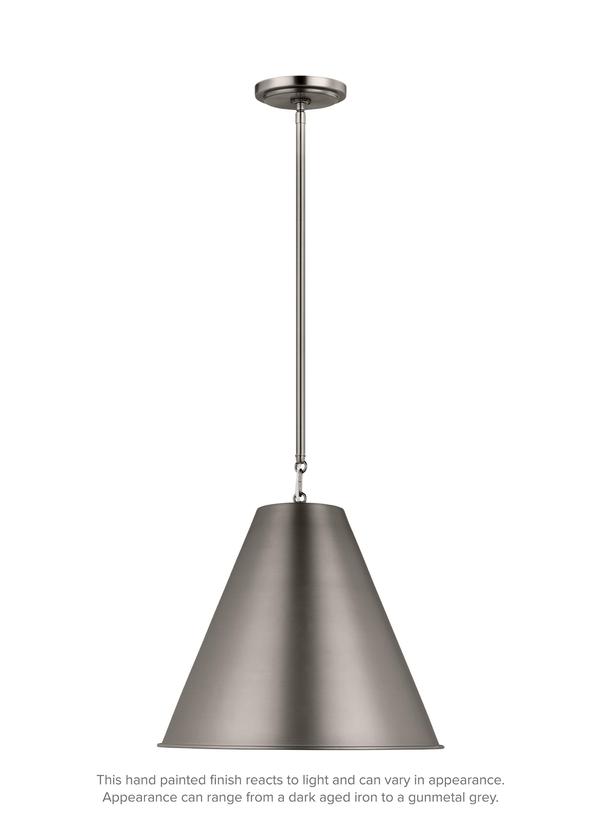

6585101EN3-965: One Light Small Pendant


Collection:  Gordon

Gordon features a tapered steel shade suspended from a chain and set into a round canopy

Sloped ceiling mounting hardware included

Fixture is supplied with 1 light bulb

Shade interior is gloss white

Damp Rated

UPC #:785652088513

Finish:   Antique Brushed Nickel (965)
Dimensions:

Diameter: 15 1/4''
Height: 15 3/4''
Weight: 5.7 lbs.
Overall Height: 60 1/4''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Antique Brushed Nickel
1 Accents - Steel - Antique Brushed Nickel
3 12" Stem - Steel - Antique Brushed Nickel
1 6" Stem - Steel - Antique Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6585101)
Trilingual (English, Spanish, and French) (6185101 6585101 6685101)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Antique Brushed Nickel 1       12 3/4 15 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6585101-965 1  785652088513  8 18 16.9 1.408 7.6 0 Yes
Master Pack 6585101EN3-965 0  10785652088510
NJ Pallet   24    48 40 77 85.556 182.4 No
NV Pallet   24    48 40 77 85.556 182.4 No
