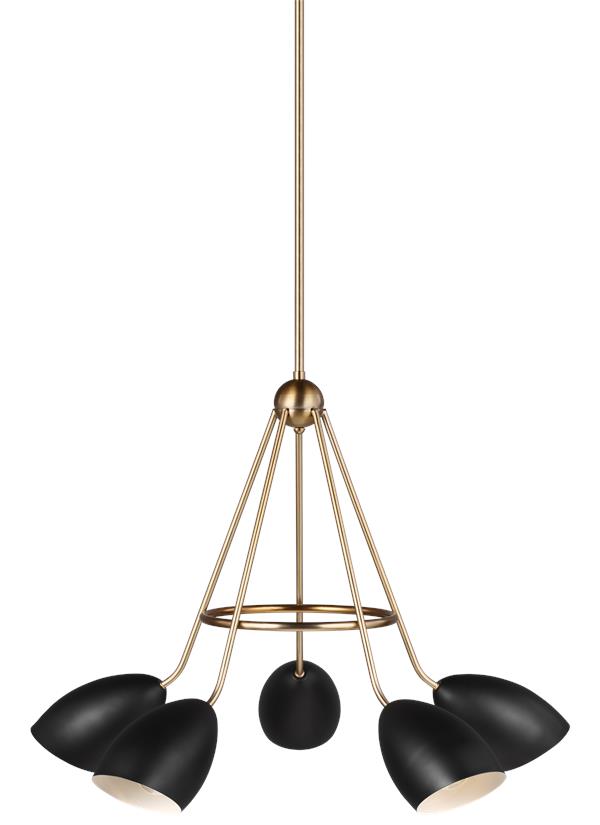

3175905EN3-112: Five Light Chandelier



Collection:  Summer


The Summer series brings mid-century, retro style to the traditional circular silhouette

Light bulbs included with fixture

Available finish options include: Satin Brass w/ Midnight Black and Satin Brass w/ Matte White

Assortment includes: a small chandelier

Damp Rated

UPC #:785652088322

Finish:   Midnight Black (112)

Dimensions:

Diameter: 30''
Height: 21 1/4''
Weight: 6.8 lbs.
Overall Height: 65 3/4''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  5 - LED Medium A19 9w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH3175905-SUM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Steel Midnight Black 5   7 3/4 4 1/2 5 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3175905EN3-112 1  785652088322  32.2 24.5 17.25 7.875 11.75 0 Yes
Master Pack 3175905EN3-112 0  10785652088329
