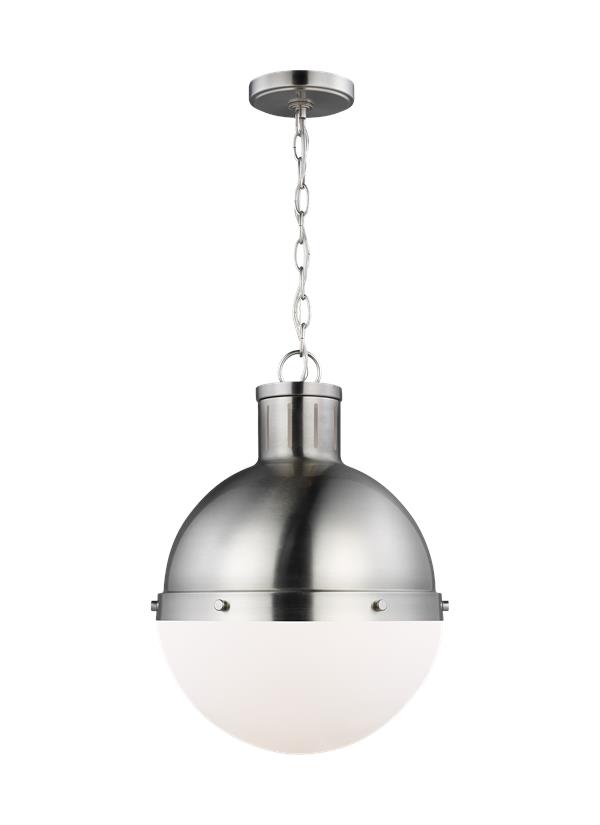

6577101EN3-962: One Light Medium Pendant


Collection:  Hanks

Transitional

Generation Lighting "True Design" fixture

Available in four finish options: Midnight Black, Antique Brushed Nickel, Satin Bronze and Brushed Nickel

Assortment includes: A small, medium and large pendant

Damp Rated

UPC #:785652086366

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 13 1/4''
Width: 13 1/4''
Height: 18''
Weight: 5.86 lbs.
Overall Height: 92''
Wire: 120'' (color/Clear Silver)
Chain: 72''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  1 - LED Medium A19 9w Max. 120v - included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Accents - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6177101 6577101 6677101)
Trilingual (English, Spanish, and French) (6177101 6577101 6677101)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Smooth White 1 G560384-34     7 3/8 12 7/8
Shade Steel Brushed Nickel 1       9 3/4 12 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6577101-112 1  785652086366  15.1 8.2 11 0.788 7.8 0 Yes
Master Pack 6577101EN3-962 0  10785652086363
NJ Pallet   24    48 40 65 72.222 188.4 No
