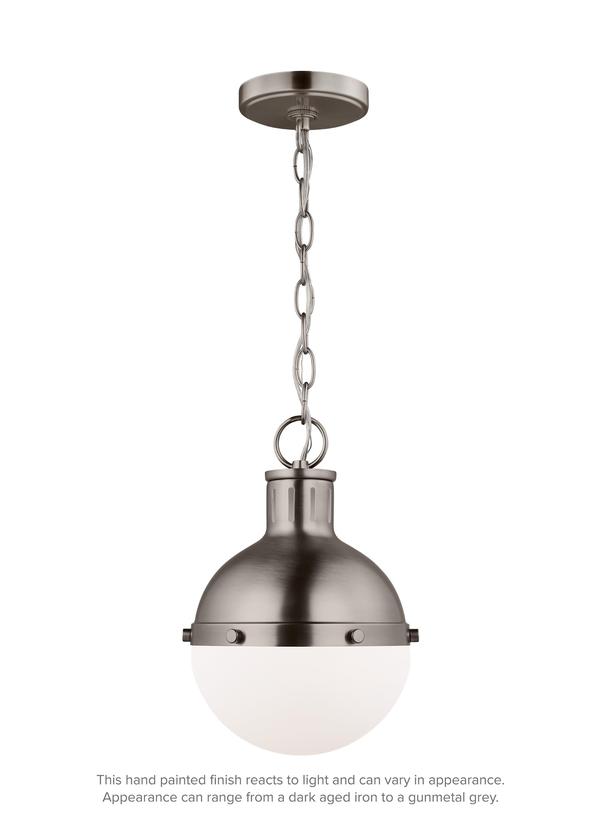

6177101-965: One Light Mini Pendant


Collection:  Hanks

Transitional

Generation Lighting "True Design" fixture

Available in four finish options: Midnight Black, Antique Brushed Nickel, Satin Bronze and Brushed Nickel

Assortment includes: A small, medium and large pendant

Damp Rated

UPC #:785652086625

Finish:   Antique Brushed Nickel (965)
Dimensions:

Diameter: 8 1/8''
Width: 8 1/8''
Height: 11 5/8''
Weight: 3.57 lbs.
Overall Height: 85 1/2''
Wire: 120'' (color/Clear Silver)
Chain: 72''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Antique Brushed Nickel
1 Accents - Steel - Antique Brushed Nickel
1 Chain - Steel - Antique Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (6177101 6577101 6677101)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Smooth White 1 G560383-34     4 1/2 7 3/4
Shade Steel Antique Brushed Nickel 1       5 3/4 7 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6577101-112 1  785652086625  5.8 13.4 10.4 0.468 4.7 0 Yes
Master Pack 6177101-965 0  10785652086622
NJ Pallet   112    48 40 77 85.556 532 No
NV Pallet   112    48 40 77 85.556 532 No
