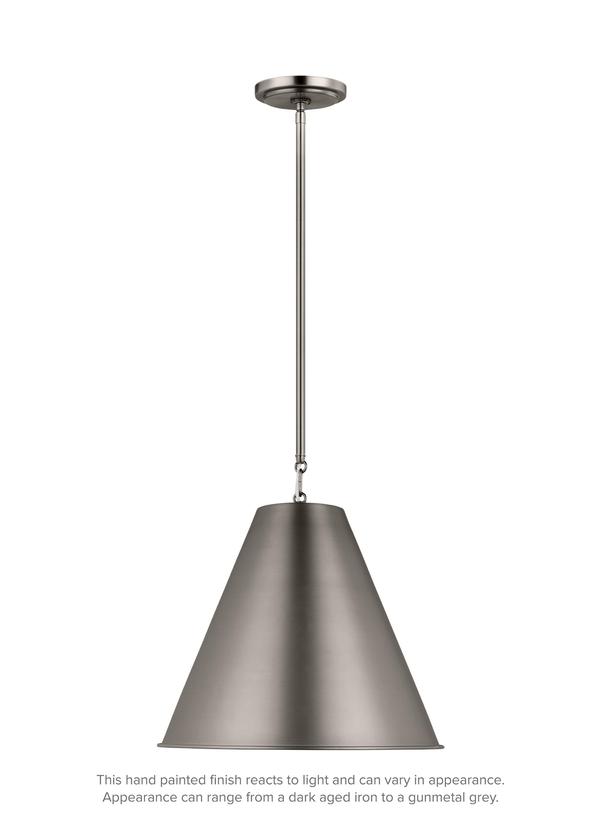

6585101-965: One Light Small Pendant



Collection:  Gordon


Gordon features a tapered steel shade suspended from a chain and set into a round canopy

Sloped ceiling mounting hardware included

Available finish options include: Antique Brushed Nickel, Antique White, Midnight Black and Satin Brass

Shade interior is gloss white

Damp Rated

UPC #:785652085758

Finish:   Antique Brushed Nickel (965)

Dimensions:

Diameter: 15 1/4''
Height: 15 3/4''
Weight: 5.7 lbs.
Overall Height: 60 1/4''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Antique Brushed Nickel
1 Accents - Steel - Antique Brushed Nickel
3 12" Stem - Steel - Antique Brushed Nickel
1 6" Stem - Steel - Antique Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6585101)
Trilingual (English, Spanish, and French) (6185101 6585101 6685101)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Steel Antique Brushed Nickel 1       12 3/4 15 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6585101-965 785652085758  17.95 17.95 16.53 3.082 7.6 0 Yes
Master Pack 6585101-965 10785652085755
NJ Pallet   24    48 40 77 85.556 182.4 No
NV Pallet   24    48 40 77 85.556 182.4 No
