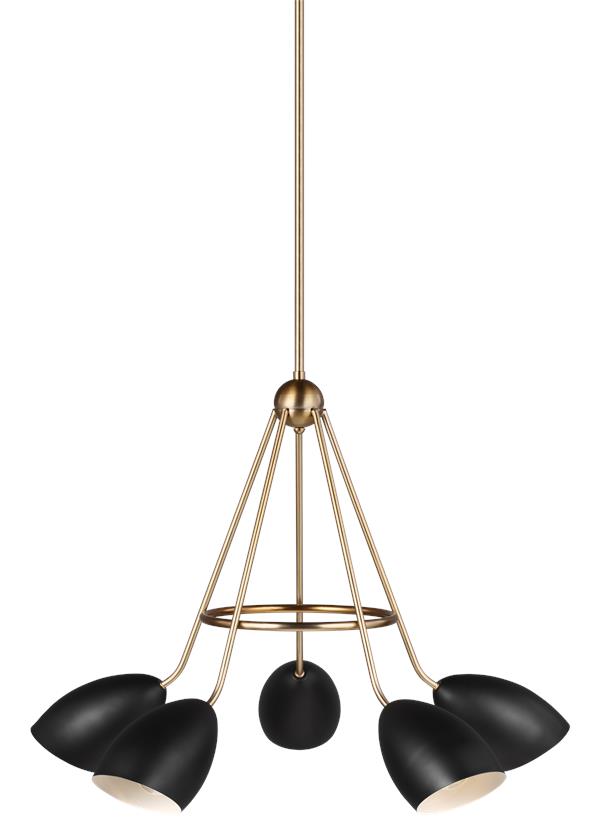

3175905-112: Five Light Chandelier


Collection:  Summer

The Summer series brings mid-century, retro style to the traditional circular silhouette

Sloped ceiling mounting hardware included

Available finish options include: Satin Brass w/ Midnight Black and Satin Brass w/ Matte White

Assortment includes: a small chandelier

Damp Rated

UPC #:785652085437

Finish:   Midnight Black (112)
Dimensions:

Diameter: 30''
Height: 21 1/4''
Weight: 6.8 lbs.
Overall Height: 65 3/4''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  5 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (3175905)
Trilingual (English, Spanish, and French) (990CH3175905-SUM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Steel Midnight Black 5   7 3/4 4 1/2 5 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3175905-112 1  785652085437  32.2 24.5 17.25 7.875 11.75 0 Yes
Master Pack 3175905-112 0  10785652085434
NJ Pallet   8    48 40 72 80 94 No
NV Pallet   8    48 40 74 82.222 94 No
