Job Name:
 Job Type:
Comments:
 Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

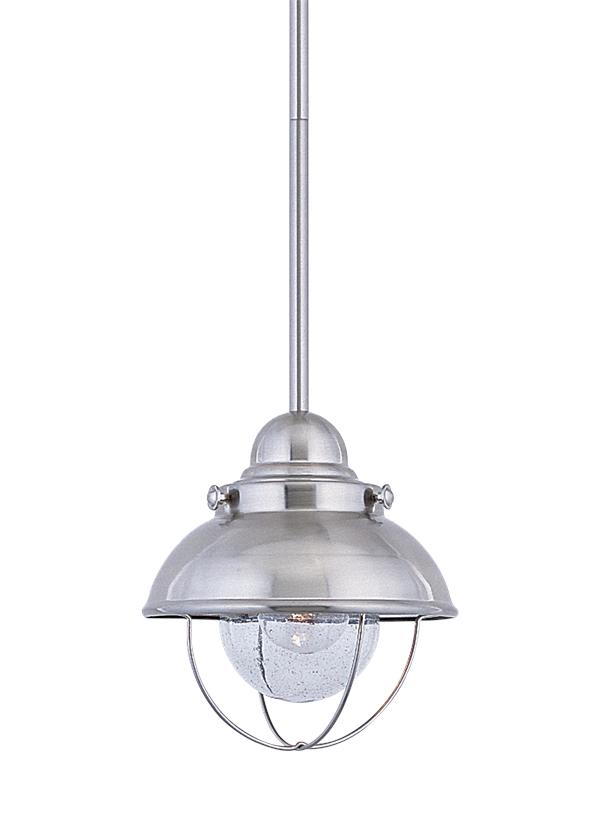

6150-98: One Light Outdoor Mini-Pendant


Collection:  Sebring

Eye-catching style, in a brushed stainless finish over aluminum. Clear seeded glass adds just the right sparkle. Includes three interconnecting 12" stems, 12" chain, and canopy.

Single Light Mini-Pendant with Brushed Stainless Finish and Clear Seeded Glass.

Shade interior painted white

For Additional Stems, Order 9199-98; Three 12 Inch Stems, Chain and Canopy Included.

Supplied with adjustable 10-feet of wire for preferred length

Additional extension rods included for a do-it-yourself project and customized look

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

Designed for damp and dry environments allowing for occasional water moisture, such as bathrooms, covered patios or porches

UPC #:785652615092

Finish:   Brushed Stainless (98)
Dimensions:

Diameter: 8''
Height: 9''
Weight: 2.5 lbs.
Overall Height: 61 3/4''
Wire: 120'' (color/Clear Silver)
Chain: 12''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Brushed Stainless
1 Chain - Steel - Brushed Stainless
3 12" Stem - Steel - Brushed Stainless
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-838)
French (F-005)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Glass Clear Seeded 1 G500523-67     5 1/4 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/4      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6150-98 1  785652615092  16.5 10.25 9 0.881 5.65 0 Yes
Master Pack 6150-98 0  10785652615099
NJ Pallet   84    48 40 72 80 474.6 No
NV Pallet   80    48 40 72 80 452 No
