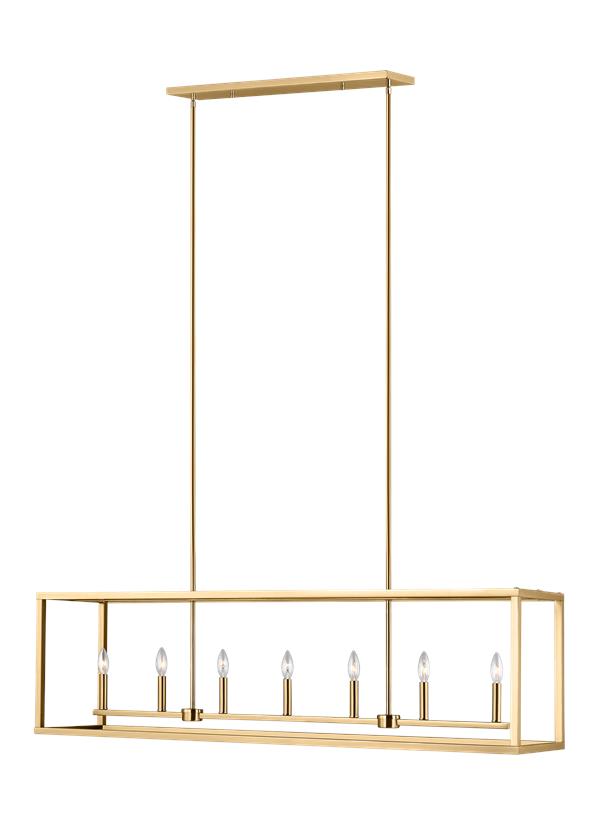

6634507EN-848: Long Seven Light Island Pendant



Collection:  Moffet Street


Traditional iron forms and casual styling available in three finishes

The Sea Gull Collection Moffet Street seven light kitchen island light in Satin Brass offers a distinctive take on a rustic theme. Built in broad steel frames with hand-applied finish that mimics natural wood. This combination of rustic and urban fits comfortably in a wide variety of environments. The sharp, squared lines of the frame complement a wide variety of settings. The collection includes eight-light foyer, four-light foyer, one- light wall sconce, and a six-light island fixture. The Moffet Street Collection is available in three beautiful finishes Washed Pine, Brushed Nickel and Satin Brass All fixtures are California Title 24 compliant and damp rated for use in sheltered, damp environments.

7 Torpedo Candelabra 3.5 watt light bulbs

Fixture is supplied with 1 light bulb

Easily converts to LED with optional replacement lamps

Damp Rated

UPC #:785652082283

Finish:   Satin Brass (848)

Dimensions:

Length: 54"
Width: 12''
Height: 15''
Weight: 19.2 lbs.
Overall Height: 59 1/8''
Wire: 120'' (color/Clear Gold)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  7 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • Clear bulb(s) recommended for this fixture
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Brass
2 6" Stem - Steel - Satin Brass
6 12" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6634506 6634507)
Trilingual (English, Spanish, and French) (6634506 6634507)
Trilingual (English, Spanish, and French) (990P6634506-MOF)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4  25 1/8  5 7/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6634507-710 785652082283  57.5 19 15 9.484 25.6 0 Yes
Master Pack 6634507EN-848 10785652082280
NJ Pallet     72 40 65.5 109.167 204.8 No
NV Pallet     72 40 65.5 109.167 204.8 No
