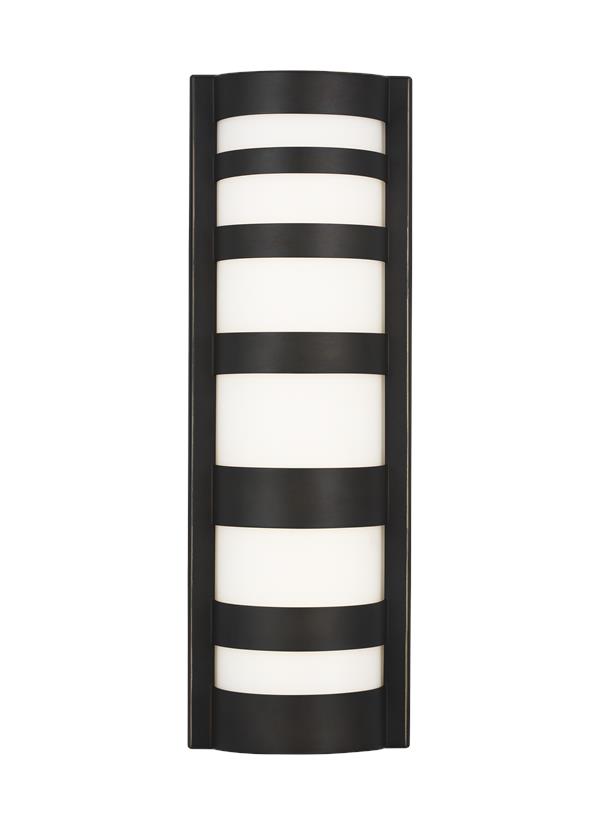

8743193S-71: Large LED Outdoor Wall Lantern


Collection:  Rebay

Advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.

The dual up-and-down lighting design sends beautiful illumination up from the top and out from the bottom of the fixture.

Two finish options available: Antique Bronze and Black

Assortment includes: a small, medium and large one-light wall lantern

Wet Rated

UPC #:785652076930

Finish:   Antique Bronze (71)
Dimensions:

Width: 6 1/2''
Height: 19 1/2''
Weight: 7.99 lbs.
Extends: 3 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 15
Watts Consumed: 15
Watts Rated: 15
Hours Rated: 50000
Lumens: 1310
Bulb Temp: 3000 °K
CRI: 90
Features:
  • Meets American with Disabilities Act standard extension requirements
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_43193S-REB)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Glass Etched / White Inside 1 G560363-303 18 1/2 5 1/8 2 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 19 1/2  6 1/2  7/8    9 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8531701-12 1  785652076930  24.25 7.5 10.5 1.105 8.7 0 Yes
Master Pack 8743193S-71 0  10785652076937
NJ Pallet   54    48 40 73 81.111 469.8 No
NV Pallet   54    48 40 73 81.111 469.8 No
