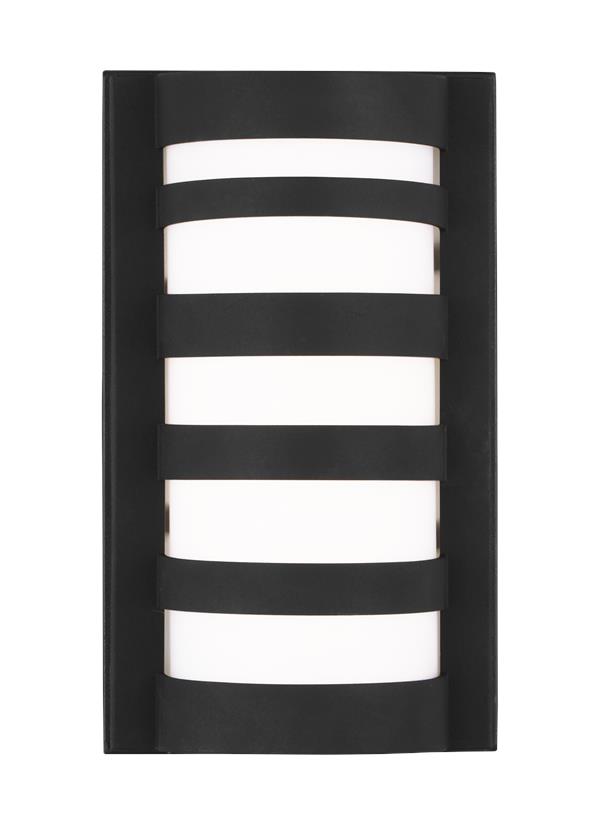

8543193S-12: Small LED Outdoor Wall Lantern


Collection:  Rebay

Advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.

The dual up-and-down lighting design sends beautiful illumination up from the top and out from the bottom of the fixture.

Two finish options available: Antique Bronze and Black

Assortment includes: a small, medium and large one-light wall lantern

Wet Rated

UPC #:785652076862

Finish:   Black (12)
Dimensions:

Width: 5 3/8''
Height: 9 5/16''
Weight: 2.77 lbs.
Extends: 3 5/16''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 5
Watts Consumed: 5
Watts Rated: 5
Hours Rated: 50000
Lumens: 450
Bulb Temp: 3000 °K
CRI: 90
Features:
  • Meets American with Disabilities Act standard extension requirements
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant high efficacy light source that is not required to be listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8543193S-REB)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Glass Etched / White Inside 1 G560362-303 8 1/8 4 2 7/32
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 9 5/16  5 3/8  7/8    4 3/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8531701-12 1  785652076862  13.5 7 9.25 0.506 3.7 0 Yes
Master Pack 8543193S-12 0  10785652076869
NJ Pallet   150    48 40 76 84.444 555 No
NV Pallet   150    48 40 76 84.444 555 No
